Miniature Bearings Australia
CFB075-25-120M-R45 - Datasheet
MBA
Category Information
Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data

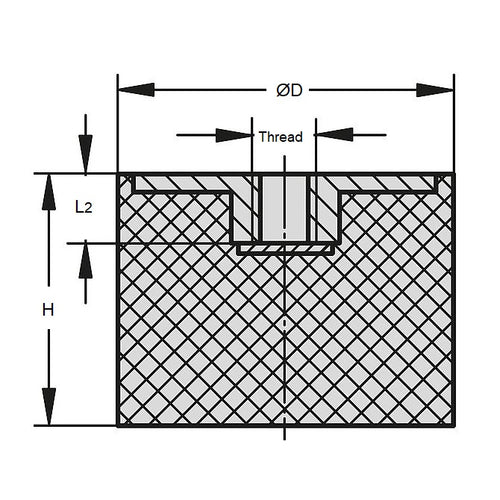

- Nom. Body Diameter (D) : 75.0 mm
- Body Height (H) 25.0 mm
- Thread Size M12x1.75
- Shore Hardness 45
- Compression Load 900 Kg (lbs)
- Deflection 6.3 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 7525FFB12-45
- 7525FFB1245
