CCE-07000-S15 - Datasheet
MBA
Category Information

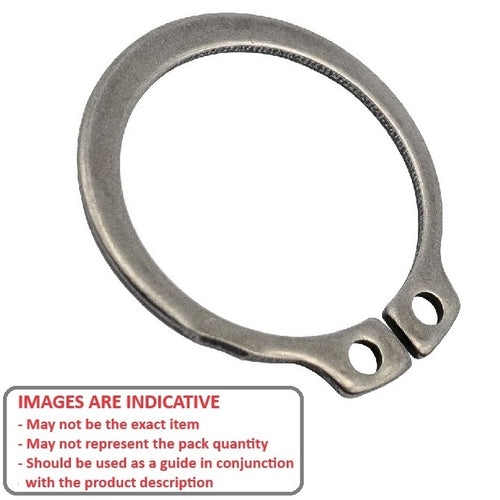

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.

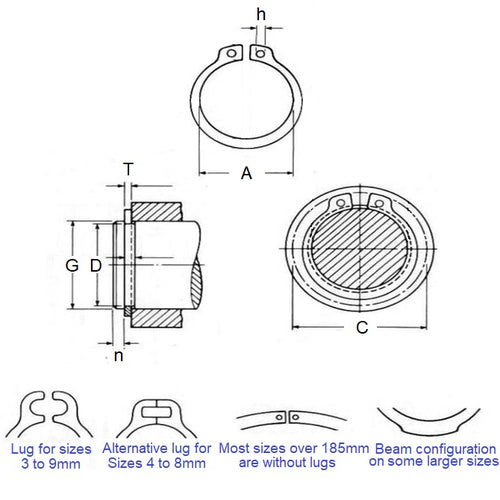

Product Data
- Shaft Diameter (Ds) : 70.00 mm
- Clip Thickness (T)
2.50
mm
+ 0.00 / - 0.07
(Equiv. 0.098 in.) - Groove Dia. (Dg)
67.00
mm
+ 0.00 / - 0.30
(Equiv. 2.638 in.) - Approx. Loose Circlip ID (A) 65.50 mm
- Groove Width (W) 2.65 mm
- Clearance on Shaft (C1) 83.20 mm
- Clearance in Groove (C1) 87.00 mm
- Min. Lug Diameter (h) 3.00 mm
- Min. Extension (n) 4.50
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-070-SS
- 90967A410
- Seeger® A-070-SS
- Seeger® A70K500-S
- Seeger® A70X2.5-411
- Seeger® A70X2.5SS
- Bossard® BN818-070-SS
- Waldes® D1400-070-SS
- Huyett® DSH-070-SS
- NoCor® DSH-070-SS
- Rotor Clip® DSH-070-SS
- BN818070SS
- A070SS
- D1400070SS
- A70X25411
- A70K500S
- 471070SS
- DSH070SS
