KW-079-122-280-CH - Datasheet
ExaktKey
Category Information

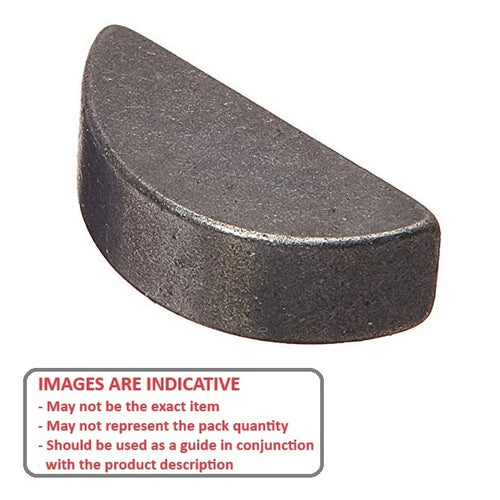

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.

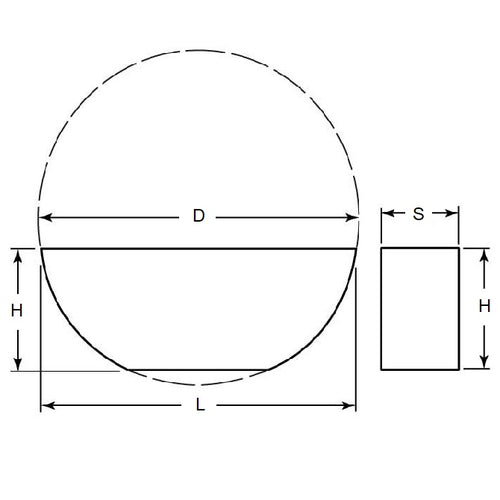

Product Data
- Thickness (S)
:
7.94
mm
+/- 0.025
(Equiv. 0.313 in.) - Approx. Height (H)
12.2
mm
+/- 0.250
(Equiv. 0.48 in.) - Approx. Length (L) 28.04 mm
- Basis Diameter (D) 28.58 mm
- Finish Plain
- Hardness HRC 40-50
- Material Carbon Steel C45 Hardened
Product Compliance and Data
Additional Resources
Cross References
- NoCor® 1009H
- ANSI 1009-H
- Key Size C Hardened
- Huyett® WKA-00C
- NoCor® WKA00C
- KW079286CH
