RP079-0254-420 - Datasheet
MBA
Category Information

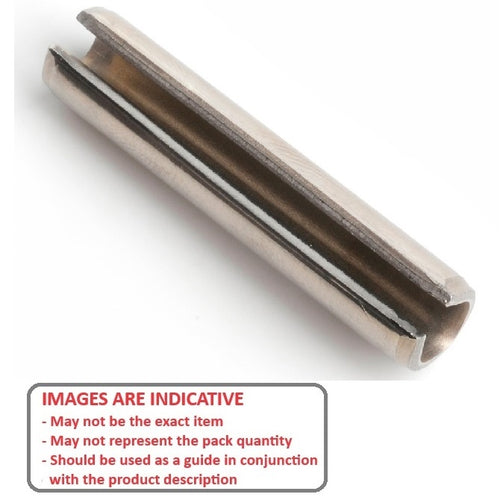

Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data

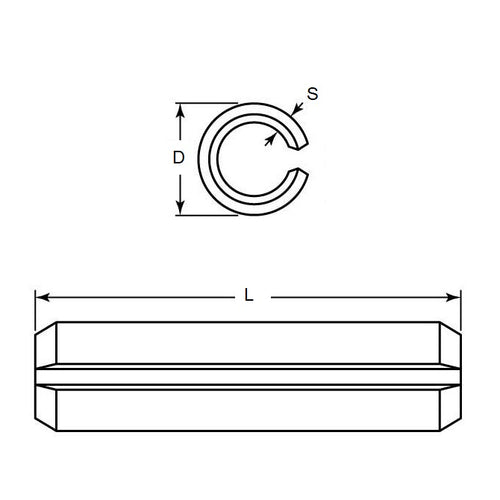

- Nominal Diameter (D) : 7.94 mm
- Length (L) 25.40 mm
- Free Diameter 8.71 mm
- Thickness (S) 1.57 mm
- Chamfer Length (cL) 0.36-2.03 mm
- Chamfer Diameter (cD) 7.8 mm
- Standard DIN7343/ISO8750
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- 92383A771
- Small Parts DWX-5-16
- Reid Tool® P-340
- DWX516
- P340
