BF0079-0095-0051-PC2 - Datasheet
MBA
Category Information

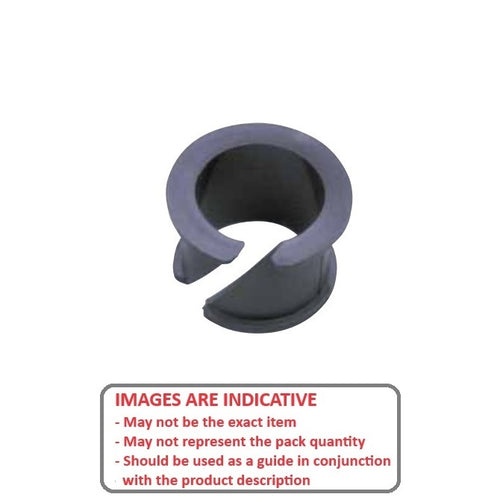

Bushes - Clip - Double FlangedDouble Flanged Clip Bushes. For use with sheet metal. Used as a light duty split bearing.
- Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
- Light weight
- M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)

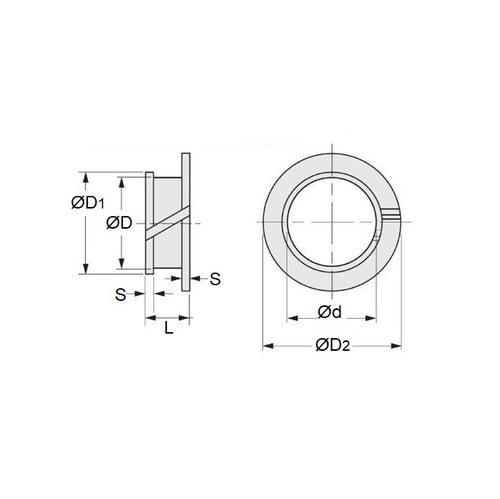

Product Data
- Nominal Inside Diameter (d) : 7.938 mm
- Nominal Outside Diameter (D) 9.525 mm
- Overall Length 5.080 mm
- Large Flange Dia 12.700 mm
- Flange Width (S) 0.8 mm
- Small Flange Dia 10.319 mm
- Min Housing Bore 9.304 mm
- Max Housing Bore 9.525 mm
- Min Shaft Size 7.912 mm
- Max Shaft Size 7.938 mm
- Sheet Metal Thickness 1.83 to 3.43
- Material Plastic
Product Compliance and Data
Additional Resources
- DU Bush Material Information
- General Bushes Catalogue
- Sintered Bronze Products Catalogue
- Solid Bronze Bushes catalogue
Cross References
- 6126K44
- S99GMC314120
- S99GMC-314120
