KM079-130-6L30-ST - Datasheet
MBA
Category Information
Knobs - Lobe - Six Lobe - MaleMale Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

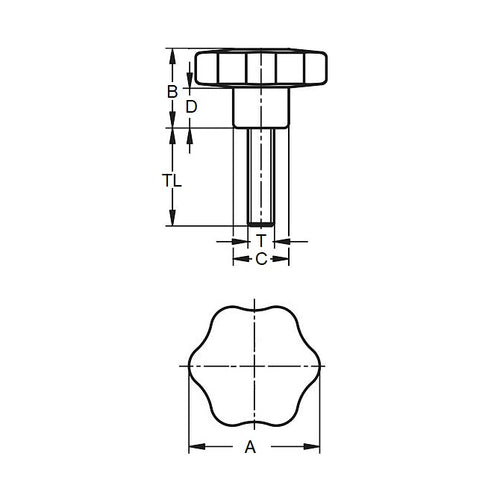

- Thread Size : 7.87 Unthreaded Hole
- Head Diameter (A) 130.05 mm
- Thread Length 30.0 mm
- Colour Black
- Hub Diameter (C) 39.88 mm
- Hub Length (D) 46.99 mm
- Knob Height (B) 65.02 mm
- Material Steel
