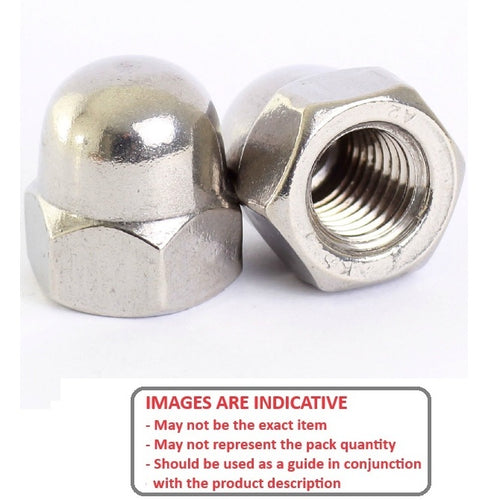

NT111C-DM-S4 - Datasheet

Brighton Best

Product Data

• Thread Size : 7/16-14 UNC (11.11mm)
• Material 304 Stainless

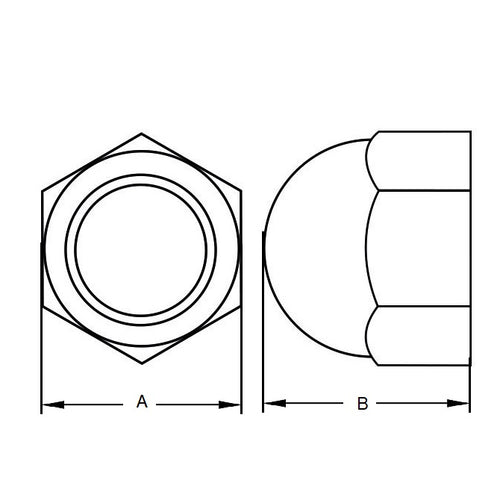

• Height (B) 19.05 mm
• Across Flats (A) 17.47
• Pitch 1.814 mm
• Threads Per Inch 14 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best® 569058
• 91855A560
