RP060-0300-Z - Datasheet
MBA
Category Information

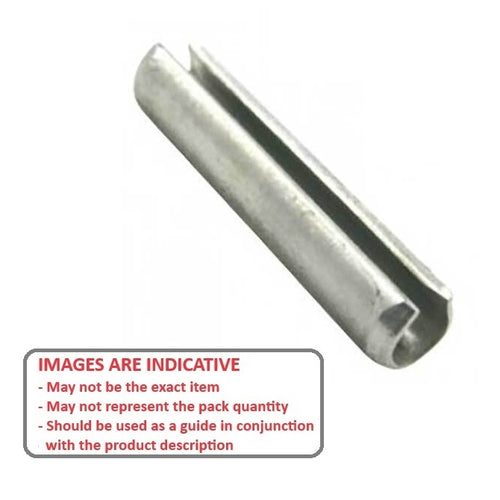

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data

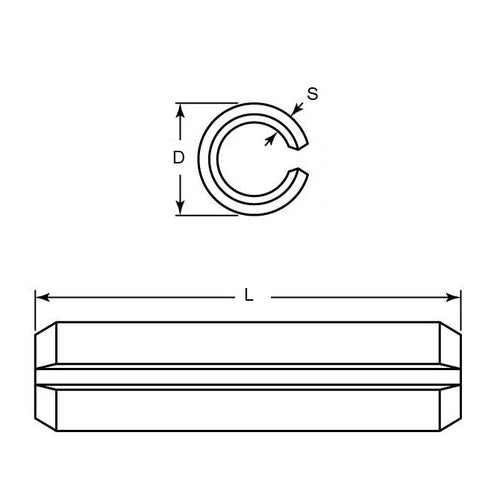

- Nominal Diameter (D) : 6.00 mm
- Length (L) 30.00 mm
- Free Diameter 6.60 mm
- Thickness (S) 1.20 mm
- Chamfer Length (cL) 0.40-1.60 mm
- Chamfer Diameter (cD) 5.8 mm
- Standard ASME B18.8.4M Type B
- Type Standard
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor® SPMZ-060-030
- Huyett® SPMZ-060-030-A
- NoCor® SPMZ-060-030-A
- Brighton Best® V81420
- SPMZ060030A
