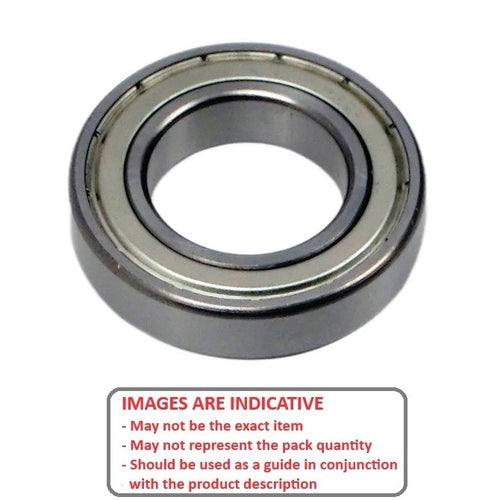

686B-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

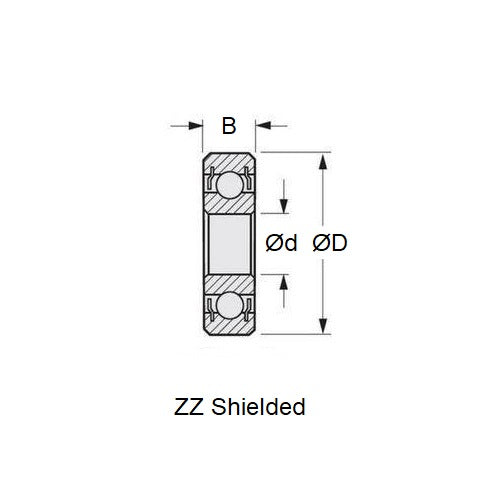

Double Shielded Standard Bearing
- ID (d)
:
6.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.236 in.) - O.D. (D)
13.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.512 in.) - Width (B)
5.000
mm
+ 0.000 / - 0.125
(Equiv. 0.197 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 686B
- Limiting Speed 40000
- Cage Type Ribbon
- Static Load Rating KGf 45
- Dynamic Load Rating KGf 110
- Radii 0.15 mm
- Inner Shoulder (UI) 7.40mm
- Outer Shoulder (UO) 11.70 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- BMT - 1-10 Gas - Bearing
- CEN - Genesis 46 RTR Chasis 1/8 Scale - Bearing
- GS General Silicone - Vision Pro - Bearing
- Hobao® - Hyper GPX4 - Bearing
- HPI - E Savage - Bearing
- HPI - Proceed - Bearing
- HPI - Proceed Update - Bearing
- HPI - R40 - Bearing
- HPI - R40 With Clutch Bell And Steering - Bearing
- HPI - Savage 25 and RTR - Bearing
- HPI - Savage and SavageX - Bearing
- HPI - Savage SS - Bearing
- HPI - Savage XSS - Bearing
- Kyosho® - Evolva - Bearing
- Kyosho® - Evolva 2005 - Bearing
- Kyosho® - Fantom 2001 - Bearing
- Kyosho® - Giga Crusher - Bearing
- Kyosho® - Giga Crusher SF - Bearing
- Mugen® - K2 Advanced - Bearing
- Mugen® - MBX-4 - Bearing
- Mugen® - MBX-4XR - Bearing
- Mugen® - MBX-5 - Bearing
- Mugen® - MBX-5 Prospect - Bearing
- Mugen® - MBX-5 T - Bearing
- Mugen® - MBX-RR - Bearing
- Mugen® - MBX-XR Works - Bearing
- Mugen® - MRX-3 1/8 Scale - Bearing
- Mugen® - MRX-4 - Bearing
- Mugen® - MRX-4R - Bearing
- Mugen® - MTX-2 - Bearing
- Mugen® - MTX-2 4-WD - Bearing
- Mugen® - MTX-3 - Bearing
- Mugen® - MTX-3 Prospect - Bearing
- Mugen® - MTX-4 - Bearing
- Mugen® - SE7 K1 - Bearing
- Mugen® - Seiki MBX-4RR - Bearing
- Mugen® - Sting 1/8 Gas - Bearing
- NEO - 1-8 Gas - Bearing
- Ofna® - GT LX - Bearing
- Ofna® - Hoar 4-WD Buggy - Bearing
- Ofna® - MBX - Bearing
- Ofna® - Pirate 1/8 Gas - Bearing
- Ofna® - Ultra GT - Bearing
- Ofna® - Ultra LX COMP RTR - Bearing
- Ofna® - Ultra LX Pro RTR - Bearing
- Ofna® - World GT - Bearing
- Picco® - Integra 1/8 Gas - Bearing
- Picco® - Shepherd Speed 1/8 - Bearing
- Serpent® - 705 - Bearing
- Serpent® - 710 1-10TH Gas Sedan - Bearing
- Serpent® - 835 1-10 2WD - Bearing
- Serpent® - 835 1-10 4WD - Bearing
- Serpent® - 9000 - Bearing
- Serpent® - 950 - Bearing
- Serpent® - 950R - Bearing
- Serpent® - 950R With Front Wheel Upgrade - Bearing
- Serpent® - 950R With STE Ten and Front Wheel UP - Bearing
- Serpent® - 950R With Steering and Tensioner - Bearing
- Serpent® - 960 - Bearing
- Serpent® - 960 FD - Bearing
- Serpent® - Excel 1/8 Gas - Bearing
- Serpent® - Impact 10 M2 Challenger - Bearing
- Serpent® - Impact 10 Pro 2 - Bearing
- Serpent® - Impact M2 Spec 2000 4WD - Bearing
- Serpent® - Impact-10 - Bearing
- Serpent® - Impulse 1/10 Scale Single SPE - Bearing
- Serpent® - Impulse Pro 1/10 4WD - Bearing
- Serpent® - Impulse Street 2 Speed 4WD - Bearing
- Serpent® - Impulse Street Spec 4WD - Bearing
- Serpent® - Sprint 6000 Gas - Bearing
- Serpent® - Vector - Bearing
- Serpent® - Vector Spec 2000 - Bearing
- Team Losi® - Aftershock Monster Truck RTR LOSB0012 - Bearing
- Team Losi® - Monster Truck LST2 LOSB0015 - Bearing
- Xray® - NT1 - Bearing
Cross References
- HIROBO 2500-079
- SKF 628-6-2Z
- WIB 628-6-2Z
- WIB 628-6-Z
- ADR 628-6-ZZ
- WIB 628-6-ZZ
- GRW 686-2Z
- ISO 686ZZ
- ISO 686-ZZ
- NTN® 686-ZZ
- NTN® W686-ZZ
- 6286ZZ
- 62862Z
- W686ZZ
- L1360ZZ
- L-1360-ZZ
- 2500079
- 686SS
- 6862Z
- 686B-ZZMC3
- 686BZZMC3
- 686B Basic Size Ref
