MR126A-CSN-ZZS-ACO-ECO - Datasheet

ENQUIRE

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings with steel races and ceramic balls.
  • For standard bearings, the balls are usually one of the first components to show wear.
  • Ceramic balls are harder than steel and do not wear as easily.
  • Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

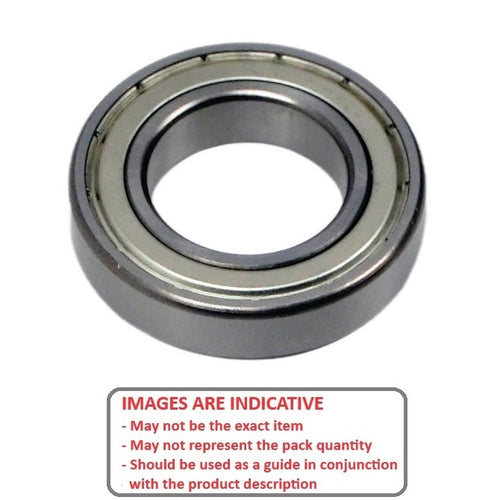

Double shielded ceramic-hybrid bearing with light anti-rust lubricant

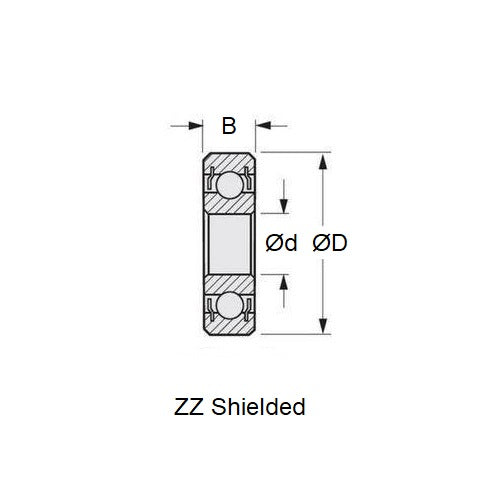

  • ID (d) : 6.000 mm
  • O.D. (D) 12.000 mm
  • Width (B) 4.000 mm
  • Precision Grade Abec 1
  • Closure Type ZZS
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - Ceramic Si3N4 Balls
  • Lubrication Type Oil
  • Lubrication Name ACO Anti Corrosion Oil Film
  • Basic Part MR126A
  • Limiting Speed 47500
  • Cage Type Standard
  • Static Load Rating KGf 22.8
  • Dynamic Load Rating KGf 55.5
  • Radii 0.20 mm
  • Inner Shoulder (UI) 7.20mm
  • Outer Shoulder (UO) 10.90 mm
  • Number of Balls 8
  • Clearance ECO (5 to 23)
  • Precision Grade ECO
  • Closure Type ZZS
  • Max Temperature 170 Deg. C
Country of Origin: US

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Car Parts
  • Duratrax® - Delphi Indy Car - Bearing
  • Duratrax® - Overdrive ST - Bearing
  • Duratrax® - Quake Nitro - Bearing
  • Duratrax® - Thunder Quake - Bearing
  • Kyosho® - ATV - Bearing
  • Kyosho® - Evolva - Bearing
  • Kyosho® - Evolva 2005 - Bearing
  • Kyosho® - F1 FW-04 With GS-15R - Bearing
  • Kyosho® - F1 Impress - Bearing
  • Kyosho® - Fantom 2001 - Bearing
  • Kyosho® - FW-05 Foam Tyre Special Chassis - Bearing
  • Kyosho® - FW-05R - Bearing
  • Kyosho® - FW-05R INDIV. Upgrade - Bearing
  • Kyosho® - Giga Crusher - Bearing
  • Kyosho® - Giga Crusher SF - Bearing
  • Kyosho® - Half 8 Mini Inferno - Bearing
  • Kyosho® - Heavy Metal Tank - Bearing
  • Kyosho® - Mad Armour - Bearing
  • Kyosho® - Mad Force RTR - Bearing
  • Kyosho® - Mclaren BMW - Bearing
  • Kyosho® - Super Ten FW-04 - Bearing
  • Kyosho® - Twin Force -Motor Truck - Bearing
  • Kyosho® - V-One RR - Bearing
  • Kyosho® - V-One RR Evolution - Bearing
  • Kyosho® - V-One RRR - Bearing
  • Kyosho® - V-One S 2 Speed - Bearing
  • RD Logistics - Mongoose - Bearing
  • Schumaker® - Fusion R12 - Bearing
  • Tamiya® - 911 GTI 1-8 Gas - Bearing
  • Tamiya® - Acura Complete - Bearing
  • Tamiya® - Alfa Romeo - Bearing
  • Tamiya® - AMG Merceded C-Class D1 - Bearing
  • Tamiya® - AMG Merceded C-Class D2 - Bearing
  • Tamiya® - BMW 318 SI - Bearing
  • Tamiya® - Bullhead - Bearing
  • Tamiya® - F Pro - Bearing
  • Tamiya® - F1 - Bearing
  • Tamiya® - F201 Complete Kit - Bearing
  • Tamiya® - F201 Outdrive Only - Bearing
  • Tamiya® - Ferrari F189 - Bearing
  • Tamiya® - Ford F-350 Highlift - Bearing
  • Tamiya® - Globe Liner - Bearing
  • Tamiya® - Honda Civic FWD - Bearing
  • Tamiya® - Honda CRV - Bearing
  • Tamiya® - Jacos Mugen - Bearing
  • Tamiya® - Jaguar Complete - Bearing
  • Tamiya® - Jeep Wrangler - Bearing
  • Tamiya® - Juggernaut - Bearing
  • Tamiya® - Juggernaut 2 - Bearing
  • Tamiya® - King Hauler - Bearing
  • Tamiya® - Levin FWD - Bearing
  • Tamiya® - Lexus GS400 Upgrade - Bearing
  • Tamiya® - Merceded 1/8 Gas - Bearing
  • Tamiya® - Merceded C11 Complete - Bearing
  • Tamiya® - Merceded CLK - DTM AMG 2002 - Bearing
  • Tamiya® - Mitsubishi Pajero - Bearing
  • Tamiya® - Mitsubishi XB Pajero - Bearing
  • Tamiya® - Mitsubishi XB Pajero Rally SPO - Bearing
  • Tamiya® - New Beetle - Bearing
  • Tamiya® - New Super Beetle Upgrade - Bearing
  • Tamiya® - Nissan 300ZX - Bearing
  • Tamiya® - Opel Calibra - Bearing
  • Tamiya® - Porsche Taisin - Bearing
  • Tamiya® - Renault Clio Williams - Bearing
  • Tamiya® - Supra Grand National - Bearing
  • Tamiya® - TAO-3 Series - Bearing
  • Tamiya® - TB Evolution III - Bearing
  • Tamiya® - TB Evolution IV 4Evo 4 - Bearing
  • Tamiya® - TB-01 - Bearing
  • Tamiya® - TG10 MK1 Upgrade - Bearing
  • Tamiya® - TGR - Bearing
  • Tamiya® - TGX - Bearing
  • Tamiya® - TGX-MK1 1/8 Gas - Bearing
  • Tamiya® - TNX Nitro With Steering - Bearing
  • Tamiya® - TOA-3R Series - Bearing
  • Tamiya® - Toyota Blitz TA02 - Bearing
  • Tamiya® - Toyota Castrol Celica FF02 - Bearing
  • Tamiya® - TXT-1 Truck - Bearing
  • Tamiya® - Volkswagon Racer Complete - Bearing
  • Tamiya® - Volkswagon Racer-Touareg - Bearing
  • Tamiya® - Volvo 850 - Bearing
  • Team Associated® - MGT4.60SE - Bearing
  • Team Associated® - Monster GT Truck and RTR Nitro Off Road - Bearing
  • Team Losi® - Aftershock Monster Truck RTR LOSB0012 - Bearing
  • Team Losi® - LST Super Truck LOSB0010 - Bearing
  • Team Losi® - Monster Truck LST2 LOSB0015 - Bearing
  • Team Magic® - G4S - Bearing
  • Traxxas® - E-Maxx - Bearing
  • Traxxas® - E-Maxx 4WD RTR - Bearing
  • Traxxas® - Revo - Bearing
  • Traxxas® - S-Maxx Stadium Max RTR - Bearing
  • Traxxas® - Sport Maxx - Bearing
  • Traxxas® - T- Maxx 3.3 - Bearing
  • Traxxas® - T-Maxx 2.5 With Additional Trans - Bearing
  • Traxxas® - T-Maxx 4WD RTR - Bearing
  • Traxxas® - T-Maxx 4WD RTR With Additional T - Bearing
  • Traxxas® - T-Maxx All - Bearing
  • Traxxas® - T-Maxx With Additional Trans. BR - Bearing
  • Trinity® - G4 Nitro Touring Car-E Class - Bearing
  • Trinity® - Mongoose - Bearing
  • Trinity® - Reflex NT 1/10 Scale - Bearing
  • Trinity® - Reflex NT Nitro With Clutch Bell - Bearing
  • Trinity® - Reflex NT Without Clutch Bell - Bearing
  • Venom® Racing - Mini Giant RTR 4WD - Bearing
  • Yokomo® - GT-4 RTR - Bearing
  • Yokomo® - GT-4 RTR-II - Bearing
  • Yokomo® - GT-4R - Bearing
  • Yokomo® - GT-4W - Bearing
  • Yokomo® - GT-4W2L - Bearing

Cross References

  • Shielded Width A MR126/4
  • Shielded MR126A / 4
  • Similar Part MR126A-CSN-ZZ-ACO-ECO
  • ISO MR126CZZAF2
  • ISO MR126C-ZZ-AF2
  • MR126A-CSN-Z-ACO-ECO
  • MR126ACSNZACOECO
  • MR126CZAF2
  • MR126C-Z-AF2
  • MR126A Basic Size Ref
