Miniature Bearings Australia

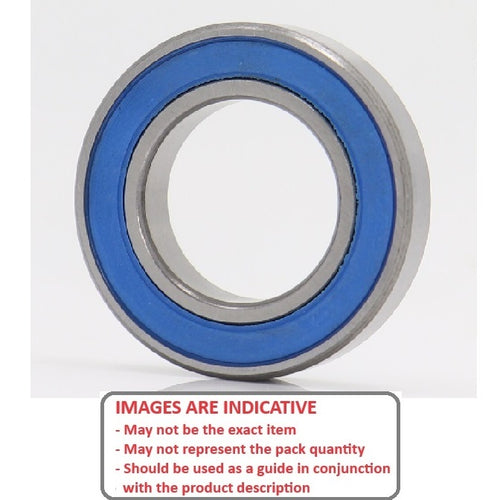

MR106A-2RB-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

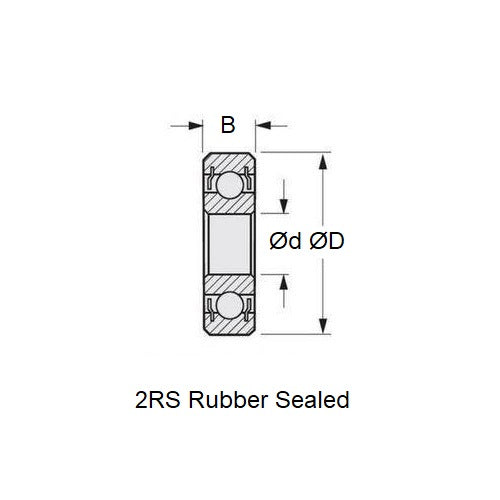

Double rubber sealed standard bearing
- ID (d) : 6.000 mm
- O.D. (D) 10.000 mm
- Width (B) 3.000 mm
- Precision Grade Economy
- Closure Type 2RB
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR106A
- Limiting Speed 38475
- Cage Type Standard
- Static Load Rating KGf 20.9
- Dynamic Load Rating KGf 48.4
- Radii 0.15 mm
- Inner Shoulder (UI) 7.04mm
- Outer Shoulder (UO) 9.30 mm
- Number of Balls 10
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type 2RB
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- Academy® & MRC® - SP-3 Extreme 1/2 Scale EP - Bearing 6-10-3mm
- Academy® & MRC® - SP-3 Matiz 1/12 Scale - Bearing 6-10-3mm
- Academy® & MRC® - SP-3 X - Bearing 6-10-3mm
- A-Tech® - XMB4 Buggy - Bearing 6-10-3mm
- A-Tech® - XMT-4 Truck - Bearing 6-10-3mm
- CEN - Genesis 46 RTR Chasis 1/8 Scale - Bearing 6-10-3mm
- CEN - Matrix - Bearing 6-10-3mm
- Cox® - Tomahawk - Bearing 6-10-3mm
- Duratrax® - Micro Street Force RTR - Bearing 6-10-3mm
- Duratrax® - Mini Quake - Bearing 6-10-3mm
- Duratrax® - Mini Quake SE - Bearing 6-10-3mm
- Duratrax® - Vendett ST Truck - Bearing 6-10-3mm
- GS General Silicone - Storm Pro Gas - Bearing 6-10-3mm
- GS General Silicone - Storm Unlimited Truck SUT-RTR - Bearing 6-10-3mm
- Hobao® - Hyper 8 - Bearing 6-10-3mm
- Hobao® - Hyper E ST Truggy - Bearing 6-10-3mm
- Hot Bodies® - Lightning 2 - Bearing 6-10-3mm
- Hot Bodies® - Lightning 2 Pro - Bearing 6-10-3mm
- Hot Bodies® - Lightning 2 RR - Bearing 6-10-3mm
- Hot Bodies® - Lightning Pro With O Radio - Bearing 6-10-3mm
- Hot Bodies® - Lightning RR Truggy RTR 1/10 - Bearing 6-10-3mm
- Hot Bodies® - Lightning Stadium Pro - Bearing 6-10-3mm
- Hot Bodies® - Lightning Stadium RTR - Bearing 6-10-3mm
- Hot Bodies® - Lightning Street 1/7 RTR - Bearing 6-10-3mm
- HPI - Hellfire - Bearing 6-10-3mm
- HPI - Micro RS4 - Bearing 6-10-3mm
- HPI - Micro RS4 Complete With Upgrade - Bearing 6-10-3mm
- HPI - Micro RS4 RTR 4WD - Bearing 6-10-3mm
- HPI - R40 - Bearing 6-10-3mm
- HPI - R40 With Clutch Bell And Steering - Bearing 6-10-3mm
- Kyosho® - Assault - Bearing 6-10-3mm
- Kyosho® - ATV - Bearing 6-10-3mm
- Kyosho® - Beetle - Bearing 6-10-3mm
- Kyosho® - Evolva - Bearing 6-10-3mm
- Kyosho® - Evolva 2005 - Bearing 6-10-3mm
- Kyosho® - F1 Impress - Bearing 6-10-3mm
- Kyosho® - Formula 1 Benitone B192 - Bearing 6-10-3mm
- Kyosho® - Formula 1 Ferrari F92A - Bearing 6-10-3mm
- Kyosho® - Formula 1 Jordan Yam - Bearing 6-10-3mm
- Kyosho® - Formula 1 Williams FW14 - Bearing 6-10-3mm
- Kyosho® - Giga Crusher - Bearing 6-10-3mm
- Kyosho® - Giga Crusher SF - Bearing 6-10-3mm
- Kyosho® - Honda CRX - Bearing 6-10-3mm
- Kyosho® - Indy Scotch - Bearing 6-10-3mm
- Kyosho® - Inferno ST-R - Bearing 6-10-3mm
- Kyosho® - Inferno Truggy - Bearing 6-10-3mm
- Kyosho® - MP 7.5 - Bearing 6-10-3mm
- Kyosho® - MP 7.5 Kanai 2 Inferno - Bearing 6-10-3mm
- Kyosho® - MP 7.5 Kanai 2 Pro-Sports - Bearing 6-10-3mm
- Kyosho® - MP 7.5 Kanai 3 Inferno - Bearing 6-10-3mm
- Kyosho® - MP 7.5 Kanai Inferno - Bearing 6-10-3mm
- Kyosho® - MP 7.5 Sports Inferno - Bearing 6-10-3mm
- Kyosho® - MP 777 Inferno - Bearing 6-10-3mm
- Kyosho® - MP 777 SP1 Inferno - Bearing 6-10-3mm
- Kyosho® - MP 777 SP2 - Bearing 6-10-3mm
- Kyosho® - MP 777 ST-R Truggy - Bearing 6-10-3mm
- Kyosho® - MP-6 International - Bearing 6-10-3mm
- Kyosho® - Outlaw RMPG 1/10 Gas. - Bearing 6-10-3mm
- Kyosho® - Outrage ST - Bearing 6-10-3mm
- Kyosho® - ProX and Trans - Bearing 6-10-3mm
- Kyosho® - Quad Rider EV - Bearing 6-10-3mm
- Kyosho® - Rampage Sport 31324 - Bearing 6-10-3mm
- Kyosho® - SR5 Truck - Bearing 6-10-3mm
- Kyosho® - Twin Force -Motor Truck - Bearing 6-10-3mm
- Kyosho® - Vanning - Bearing 6-10-3mm
- Kyosho® - V-One RR Evolution - Bearing 6-10-3mm
- Kyosho® - V-One RRR - Bearing 6-10-3mm
- Kyosho® - V-One S 2 Speed - Bearing 6-10-3mm
- MSR - X5T - Bearing 6-10-3mm
- Mugen® - Athlete Upgrade Kit - Bearing 6-10-3mm
- Mugen® - MBX-4XR - Bearing 6-10-3mm
- Mugen® - MBX-5 - Bearing 6-10-3mm
- Mugen® - MBX-5 Prospect - Bearing 6-10-3mm
- Mugen® - MBX-5 T - Bearing 6-10-3mm
- Mugen® - MBX-RR - Bearing 6-10-3mm
- Mugen® - MBX-XR Works - Bearing 6-10-3mm
- Mugen® - MRX-3 1/8 Scale - Bearing 6-10-3mm
- Mugen® - MRX-4 - Bearing 6-10-3mm
- Mugen® - MRX-4R - Bearing 6-10-3mm
- Mugen® - Seiki MBX-4RR - Bearing 6-10-3mm
- NEO - 1-8 Gas - Bearing 6-10-3mm
- Ofna® - Hyper 7 Pro - Bearing 6-10-3mm
- Ofna® - Jammin - Bearing 6-10-3mm
- Ofna® - Jammin 1 CR - Bearing 6-10-3mm
- Ofna® - Jammin 1 CR With Steering - Bearing 6-10-3mm
- RD Logistics - Mongoose - Bearing 6-10-3mm
- Robitronics® - Scalpel Pro 1/8 - Bearing 6-10-3mm
- Serpent® - 950 - Servo-Saver Bearing
- Serpent® - 950R With STE Ten and Front Wheel UP - Bearing 6-10-3mm
- Serpent® - 950R With Steering and Tensioner - Bearing 6-10-3mm
- Serpent® - Freedom T1 - Bearing 6-10-3mm
- Serpent® - Sprint 6000 Gas - Bearing 6-10-3mm
- Serpent® - Vector - Bearing 6-10-3mm
- Sport Werks® - Mayhem Pro - Bearing 6-10-3mm
- Sport Werks® - Mayhem RTR - Bearing 6-10-3mm
- Tamiya® - TB Evolution IV 4Evo 4 - Bearing 6-10-3mm
- Tamiya® - TB-02 - Bearing 6-10-3mm
- Tamiya® - Terra Crusher - Bearing 6-10-3mm
- Team Associated® - MGT4.60SE - Bearing 6-10-3mm
- Team Associated® - Monster GT Truck and RTR Nitro Off Road - Bearing 6-10-3mm
- Team Losi® - 1-8 Scale Buggy with clutch bell - Bearing 6-10-3mm
- Team Losi® - Aftershock Monster Truck RTR LOSB0012 - Bearing 6-10-3mm
- Team Losi® - Eight-T - Bearing 6-10-3mm
- Team Losi® - LST Super Truck LOSB0010 - Bearing 6-10-3mm
- Team Losi® - Monster Truck LST2 LOSB0015 - Bearing 6-10-3mm
- Team Losi® - Muggy - Bearing 6-10-3mm
- Team Magic® - G4S - Bearing 6-10-3mm
- Trinity® - G4 Nitro Touring Car-E Class - Bearing 6-10-3mm
- Trinity® - Mongoose - Bearing 6-10-3mm
- Trinity® - Reflex NT 1/10 Scale - Bearing 6-10-3mm
- Trinity® - Reflex NT Nitro With Clutch Bell - Bearing 6-10-3mm
- Trinity® - Reflex NT Without Clutch Bell - Bearing 6-10-3mm
- Xray® - FK5 Electric - Bearing 6-10-3mm
- Xray® - M18 - Bearing 6-10-3mm
- Xray® - M18 Upgrade Option - Bearing 6-10-3mm
- Xray® - M18T - Bearing 6-10-3mm
- Xray® - NT-18 - Bearing 6-10-3mm
- Xray® - T1 - Bearing 6-10-3mm
- Xray® - T1 Evo 2 - Bearing 6-10-3mm
- Xray® - T1 Factory Kit - Bearing 6-10-3mm
- Xray® - T1 FK 05 Complete - Bearing 6-10-3mm
- Xray® - T1 Racer - Bearing 6-10-3mm
- Xray® - T1M Mini - Bearing 6-10-3mm
- Xray® - X Ray - Bearing 6-10-3mm
- Xray® - XB8 Nitro - Bearing 6-10-3mm
- Xray® - XB8R - Bearing 6-10-3mm
- Xray® - XB8-TQ - Bearing 6-10-3mm
- XTM Racing - Mammoth Massive Appeal RTR - Bearing 6-10-3mm
- XTM Racing - Nitro Mammoth RTR - Bearing 6-10-3mm
- Yokomo® - MR-4 Rally - Bearing 6-10-3mm
- Yokomo® - MR-4BC Special - Bearing 6-10-3mm
- Yokomo® - MR-4MT - Bearing 6-10-3mm
- Yokomo® - MR-4TC - Bearing 6-10-3mm
- Yokomo® - MR-4TC BD - Bearing 6-10-3mm
- Yokomo® - MR-4TC Custom - Bearing 6-10-3mm
- Yokomo® - MR-4TC SD CGM - Bearing 6-10-3mm
- Yokomo® - MR-4TC SD CM Drift Package - Bearing 6-10-3mm
- Yokomo® - MR-4TC SD SSG /Black - Bearing 6-10-3mm
- Yokomo® - MR-4TC SP - Bearing 6-10-3mm
- Yokomo® - MR-4TC With Bell Crank Steering - Bearing 6-10-3mm
- Yokomo® - MX4 - Bearing 6-10-3mm
Cross References
- Sealed Width A MR106 / 3
- Sealed MR106A / 3
- MR106A Basic Size Ref
