KW-064-102-348-C - Datasheet
ExaktKey
Category Information

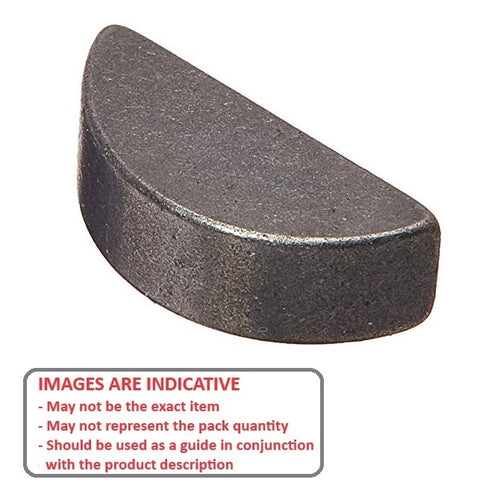

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

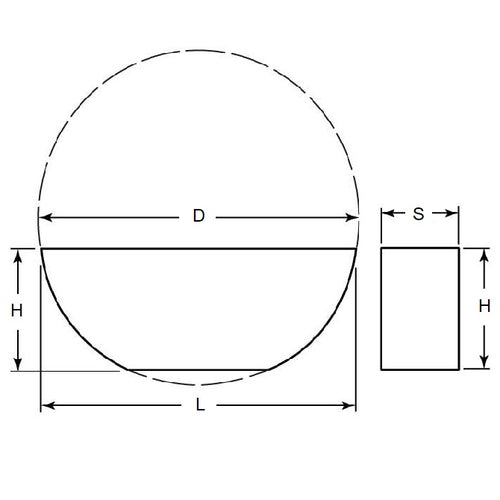

- Thickness (S)
:
6.35
mm
+/- 0.025
(Equiv. 0.25 in.) - Approx. Height (H)
10.2
mm
+/- 0.250
(Equiv. 0.402 in.) - Approx. Length (L) 34.80 mm
- Basis Diameter (D) 53.98 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- ANSI 817-1
- Key Size 127
- Huyett® WKC-127
- NoCor® WKC127
- KW064540C
