Miniature Bearings Australia
SLQ-0635-1149-05080 - Datasheet
MBA
Category Information

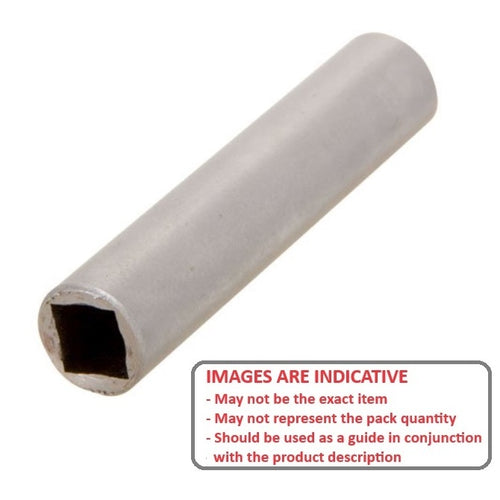

Sleeves - Square Hole - Plain - Carbon SteelCarbon Steel Plain Square Hole Sleeves. Square and concentric to 0.076mm (0.003in).
- Precisely machined, round outer surface and a uniform, precisely square-shaped hole completely through its center.
Product Data
- Nominal Square Size
:
6.350
mm
+/- 0.0254

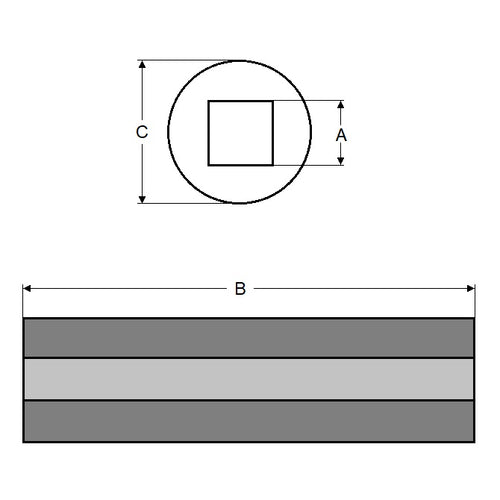

(Equiv. 0.25 in.) - Outside Diameter (C) 11.494 mm
- Length (B) 50.800 mm
- Actual Square Size (A) 6.477 mm
- More Information With 0.38mm grinding stock on O.D
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SHSG-P25
- SHSGP25
