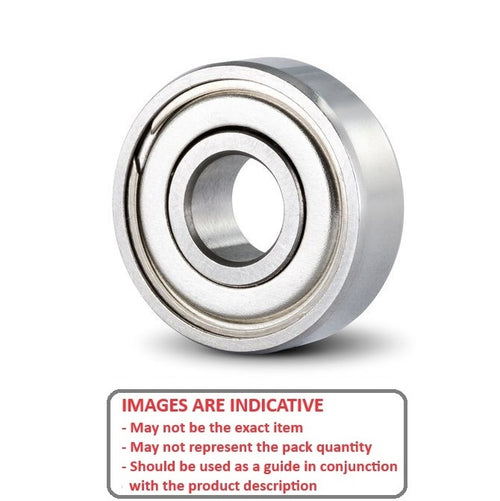

MR95A-ZZS-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

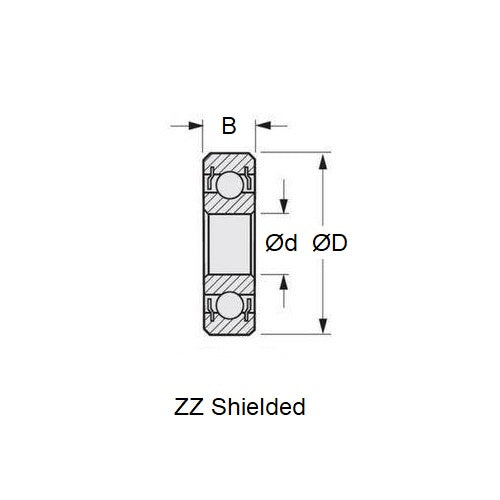

Double Shielded Standard Bearing
- ID (d)
:
5.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.197 in.) - O.D. (D)
9.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.354 in.) - Width (B)
3.000
mm
+ 0.000 / - 0.125
(Equiv. 0.118 in.) - Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR95A
- Limiting Speed 50000
- Cage Type Crown
- Static Load Rating KGf 17
- Dynamic Load Rating KGf 44
- Radii 0.15 mm
- Inner Shoulder (UI) 6.00mm
- Outer Shoulder (UO) 8.20 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- Corally® - Assassin Mid Motor and Stock Option - Bearing 5-9-3mm
- Corally® - Assassin Modified - Spur Pulley - Bearing 5-9-3mm
- Corally® - C4 - Bearing 5-9-3mm
- Corally® - C4.1 - Bearing 5-9-3mm
- Corally® - Mini Assassin - Bearing 5-9-3mm
- Corally® - Pro 10 1/12 Formula 1 - Front Wheels Bearing
- Corally® - Pro 10 1/12 Formula 1 - Spur Gear Bearing
- Corally® - RDX - Bearing 5-9-3mm
- Corally® - RDX - US Carpet Spec Edition - Bearing 5-9-3mm
- Corally® - SP10 - Bearing 5-9-3mm
- Corally® - SP12 - Bearing 5-9-3mm
- Corally® - SP2 1/12 - Bearing 5-9-3mm
- Corally® - SR12M and RTR - Bearing 5-9-3mm
- Duratrax® - Evader Buggy - Bearing 5-9-3mm
- Duratrax® - Evader BX - Bearing 5-9-3mm
- Duratrax® - Evader BX Nitro - Bearing 5-9-3mm
- Duratrax® - Evader BX Pro RTR Electric - Bearing 5-9-3mm
- Duratrax® - Evader ST - Bearing 5-9-3mm
- Duratrax® - Evader ST Nitro - Bearing 5-9-3mm
- Duratrax® - Evader ST Pro RTR - Bearing 5-9-3mm
- Schumaker® - Cat 1998 - 2000 - Bearing 5-9-3mm
- Schumaker® - Cat 2000 - Bearing 5-9-3mm
- Schumaker® - Cat 2000 - Front Wheels Bearing
- Schumaker® - Cat 2000 - Rear Wheels Bearing
- Schumaker® - Cat 2000 SE - Bearing 5-9-3mm
- Schumaker® - Cat 3000 - Bearing 5-9-3mm
- Schumaker® - Cat 3000 With Steering - Bearing 5-9-3mm
- Schumaker® - Cougar 2000 - Bearing 5-9-3mm
- Schumaker® - Cougar 2000 1995 Team Car - Bearing 5-9-3mm
- Schumaker® - Fire Blade 2000 - Bearing 5-9-3mm
- Schumaker® - FireBlade Evo - Bearing 5-9-3mm
- Schumaker® - Fusion - Bearing 5-9-3mm
- Schumaker® - Fusion 21 - Bearing 5-9-3mm
- Schumaker® - Fusion R12 - Bearing 5-9-3mm
- Schumaker® - Menace 21 - Bearing 5-9-3mm
- Schumaker® - MI2 - Bearing 5-9-3mm
- Schumaker® - MI2 EC - Bearing 5-9-3mm
- Schumaker® - Nitro Fusion 21 and RTR - Bearing 5-9-3mm
- Schumaker® - SST 2000 - Bearing 5-9-3mm
- Schumaker® - SST 2000 98 - Bearing 5-9-3mm
- Schumaker® - SST 2000 Pro - Bearing 5-9-3mm
- Schumaker® - SST 2000 Pro With Steering - Bearing 5-9-3mm
- Schumaker® - Storm Truck 2000 - Bearing 5-9-3mm
- Serpent® - Freedom T1 - Bearing 5-9-3mm
- Tamiya® - DJ TRF 414 Pro Module Suspension - Bearing 5-9-3mm
- Tamiya® - T-05 Upgrade - Bearing 5-9-3mm
- Tamiya® - TB Evolution IV 4Evo 4 - Bearing 5-9-3mm
- Tamiya® - TFF 415MS X - Bearing 5-9-3mm
- Tamiya® - TRF 414-DJ Pro Module Suspension - Bearing 5-9-3mm
- Tamiya® - TRF 415MS - Bearing 5-9-3mm
- Tamiya® - TRF 415MS Complete - Bearing 5-9-3mm
- Team Associated® - Nitro TC3 - Bearing 5-9-3mm
- Team Associated® - Nitro TC3 RTR - Bearing 5-9-3mm
- Team Losi® - Mini LST - Bearing 5-9-3mm
- Team Losi® - Mini T - Bearing 5-9-3mm
- Team Losi® - Mini T Pro - Bearing 5-9-3mm
- Team Losi® - Mini ZT - Bearing 5-9-3mm
- Trinity® - Itsy Bitsy Spyder - Bearing 5-9-3mm
- Xray® - FK5 Electric - Bearing 5-9-3mm
- Xray® - T1 - Bearing 5-9-3mm
- Xray® - T1 Evo 2 - Bearing 5-9-3mm
- Xray® - T1 Factory Kit - Bearing 5-9-3mm
- Xray® - T1 FK 05 Complete - Bearing 5-9-3mm
- Xray® - T1 Racer - Bearing 5-9-3mm
- Xray® - T1M Mini - Bearing 5-9-3mm
- Xray® - X Ray - Bearing 5-9-3mm
- Kyosho® - CONCEPT 60 R - Bearing 5-9-3mm
Cross References
- Nachi® 5M09-ZZ
- Schumaker® A542
- Duratrax DTXC1531
- BSC ML5009-ZZ
- Shielded Width A MR95/3
- Shielded MR95A / 3
- Similar Part MR95A-ZZ-MC3
- NTN® WBC5-9-ZZA
- WBC59ZZA
- L950ZZ
- L950-ZZ
- 5M09ZZ
- ML5009ZZ
- MR95-ZZ
- MR95ZZ
- MR95A-ZZSMC3
- MR95AZZSMC3
- MR95AZMC3
- MR95A-Z-MC3
- MR95A Basic Size Ref
