MR105A-ZZ-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

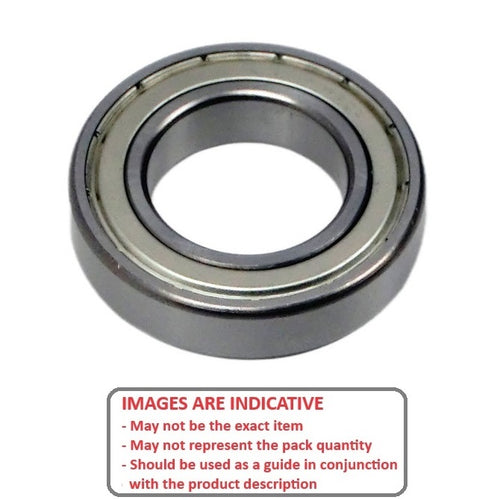

Double Shielded Standard Bearing

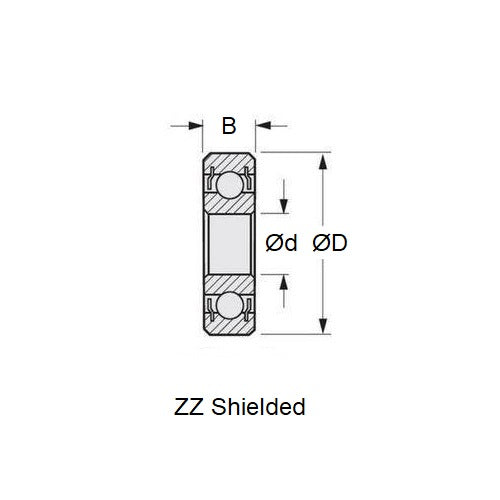

ID (d) : 5.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.197 in.)
O.D. (D) 10.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.394 in.)
Width (B) 4.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.157 in.)
Precision Grade Abec 1
Closure Type ZZ
Bearing Type Radial
Material Chrome Steel SAE 52100

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part MR105A
Limiting Speed 50000
Cage Type Crown
Static Load Rating KGf 17
Dynamic Load Rating KGf 44
Radii 0.15 mm
Inner Shoulder (UI) 6.00mm
Outer Shoulder (UO) 8.40 mm
Number of Balls 8
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZ
Max Temperature 120 Deg. C

Country of Origin: JP
