CCI-05400-C - Datasheet
MBA
Category Information

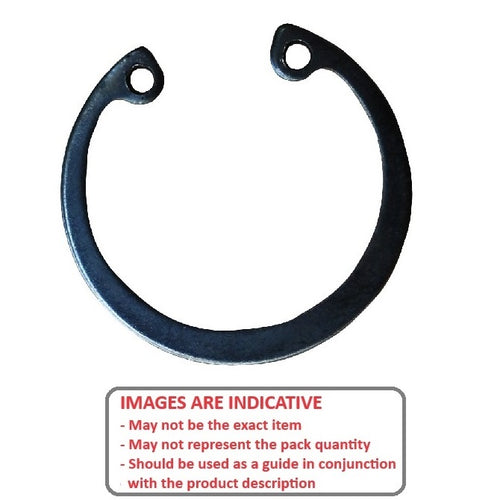

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data

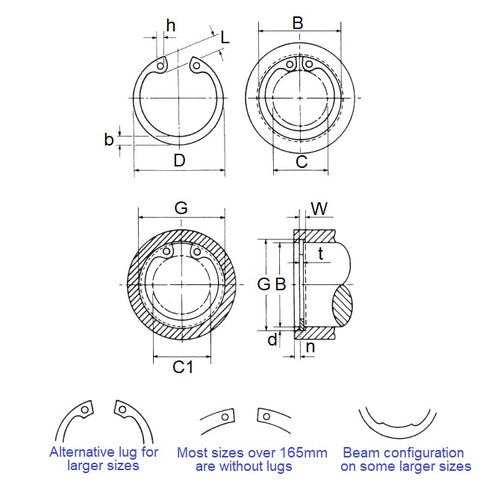

- Housing Bore (B) : 54.00 mm
- Clip Thickness (T)
2.00
mm
+ 0.00 / - 0.07
(Equiv. 0.079 in.) - Groove Dia. (Dg)
57.00
mm
+ 0.30 / - 0.00
(Equiv. 2.244 in.) - Approx. Loose Circlip OD (Dr) 58.20 mm + 1.10 / - 0.46
- Groove Width (W) 2.15 mm + 0.13 / - 0.00
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 472-054
- 98455A364
- Bossard® BN-822-054
- Waldes® D1300-054
- Huyett® DHO-054
- NoCor® DHO-054
- Rotor Clip® DHO-054
- Seeger® J-054
- Seeger® J54-S
- Seeger® J54X2
- BN822054
- J054
- J54S
- DHO054
- D1300054
- 472054
