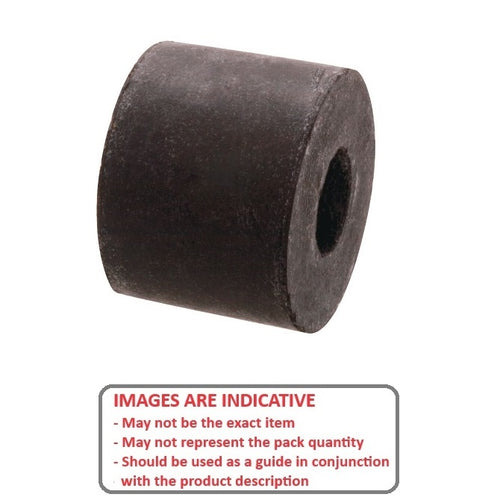

CSN-0508-064 - Datasheet
MBA
Category Information
Mounts - Bumpers - Neoprene SpringsNeoprene Springs Bumpers Mounts. Neoprene elastomer springs have proven to be the safest, most efficient material for punching, stamping and drawing dies.
- An expanded range may be available on special order. Please enquire.
- Major advantages include high loads, increased durability, better performance, no maintenance and long life.
Product Data

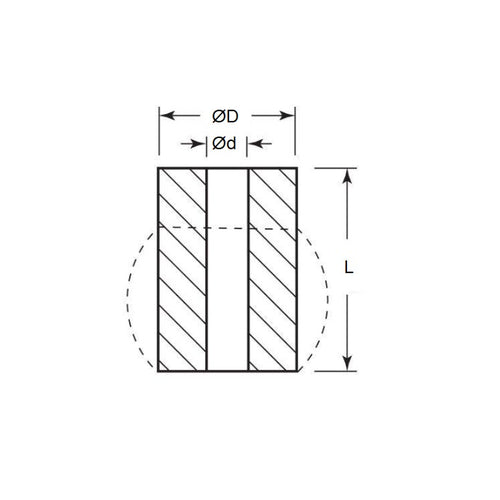

- Outside Diameter (A) : 50.80 mm
- Inside Diameter (B) 16.8 mm
- Free Length (L) 63.5 mm
- Spring Rate 259.5 N/mm Deflection +/- 20 Perc
- Max. Rec. Deflection 22.10 mm
- Approx. Load at Max Deflection 484.1 Kg
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® BES-3553
- BES3553
