RR1135RS - Datasheet

MBA

Category Information

Rollers - Drive

Drive Rollers. Neoprene 60 durometer black ground outside diameter drive rollers

    Product Data

    • Outside Diameter (A) : 50.80 mm
    • Roller Width (B) 15.88 mm
    • Bore (C) 9.550 mm
    • Sleeve Diameter (D) 38.100 mm
    • Hub Diameter (E) 25.400 mm
    • Hub Height (F) 9.525 mm
    • Set Screw 10-32 UNF (2)
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® RR-1135
      • RR1135
      View full details

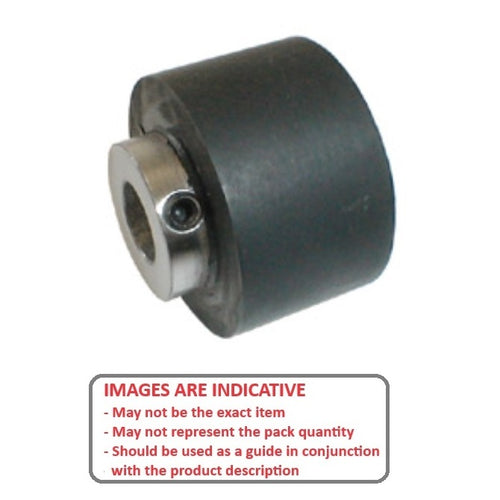

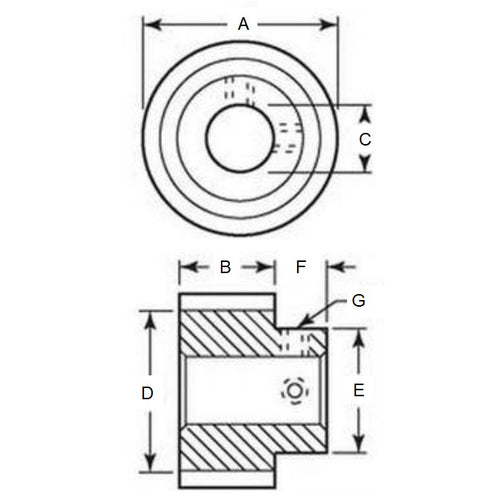

      RR1135RSDiagramRR1135RSImage
