NART5R - Datasheet

MBA

Category Information

Rollers - Track - With Inner Race

With Inner Race Track Rollers. This is the main category in this series

    Product Data

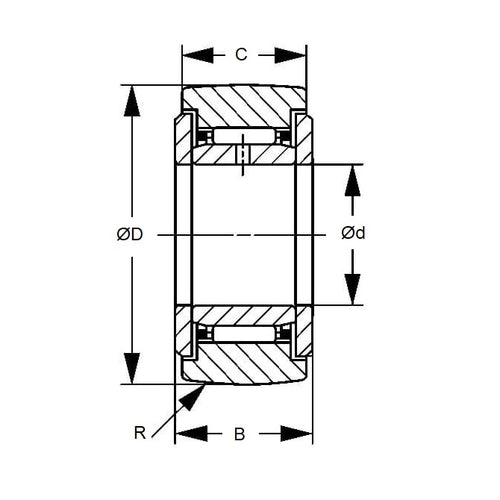

    • ID (d) : 5.00 mm
    • O.D. (D) 16.00 mm
    • Width (C) 11.00 mm
    • Inner Ring Width (B) 12.00 mm
    • OD Type Radius (500mm)
    • Dynamic Load Rating 370.00 kgf
    • Static Load Rating 380.00 kgf
    • Closures Shields
    • Material Steel
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Nachi® NART-5R
      • NART5R
      View full details

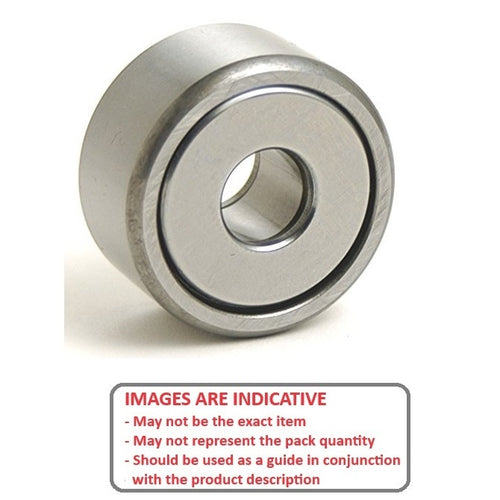

      NART5RDiagramNART5RImage
