CCE-04600-C - Datasheet
MBA
Category Information

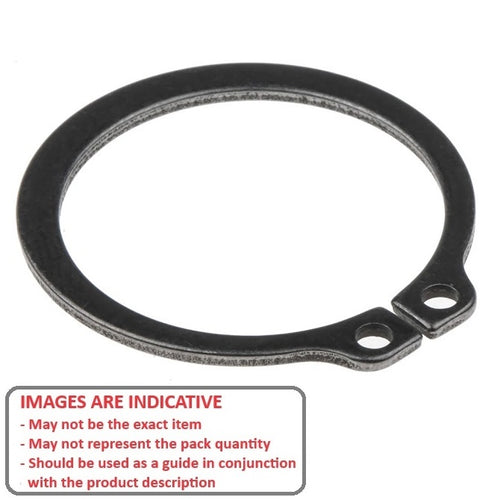

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data

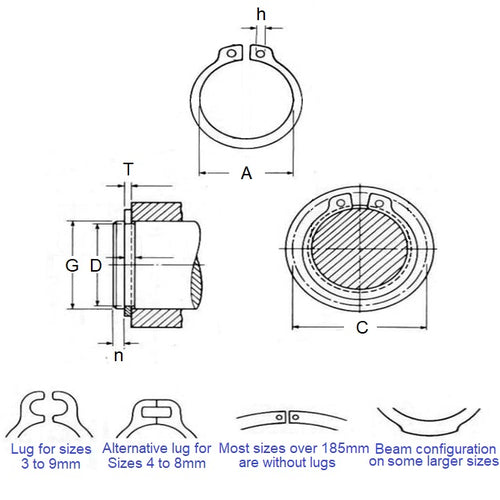

- Shaft Diameter (Ds) : 46.00 mm
- Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.06
(Equiv. 0.069 in.) - Groove Dia. (Dg)
43.50
mm
+ 0.00 / - 0.25
(Equiv. 1.713 in.) - Approx. Loose Circlip ID (A) 42.50 mm
- Groove Width (W) 1.85 mm
- Clearance on Shaft (C1) 60.10 mm
- Clearance in Groove (C1) 56.90 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 3.80
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-046
- 98541A339
- Seeger® A-046
- Seeger® A46-ARS
- Seeger® A46X1.75
- Bossard® BN818-046
- Waldes® D1400-046
- Huyett® DSH-046
- NoCor® DSH-046
- Rotor Clip® DSH-046
- A46ARS
- BN818046
- A046
- D1400-0460APP
- D1400046
- D14000460
- D14000460APP
- 471046
- DSH046
