RR1130RS - Datasheet

MBA

Category Information

Rollers - Drive

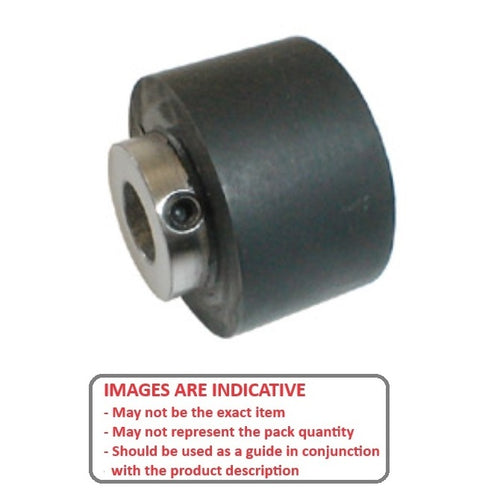

Drive Rollers. Neoprene 60 durometer black ground outside diameter drive rollers

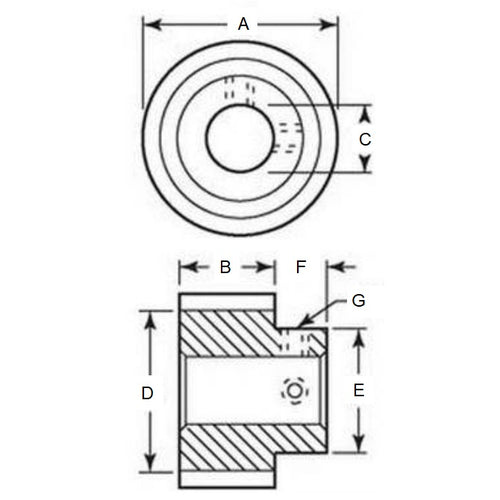

    Product Data

    • Outside Diameter (A) : 41.28 mm
    • Roller Width (B) 12.70 mm
    • Bore (C) 9.550 mm
    • Sleeve Diameter (D) 28.575 mm
    • Hub Diameter (E) 22.225 mm
    • Hub Height (F) 9.525 mm
    • Set Screw 10-32 UNF (2)
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® RR-1130
      • RR1130
      View full details
      RR1130RSDiagramRR1130RSImage
