ACE0900RS - Datasheet

ACE

Category Information

Shock Absorbers - Adjustable - Standard

Standard Adjustable Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 40.13 mm
    • Thread (T) 1-12 UNF (25.4mm)
    • Length (A/F) 188.98 / 121.41 mm
    • Shaft Diameter (D) 6.35 mm
    • Effective Weight 14 - 2041 KG
    • Wrench Flat (EE) 22.23 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-0900
      • ACE0900
      View full details

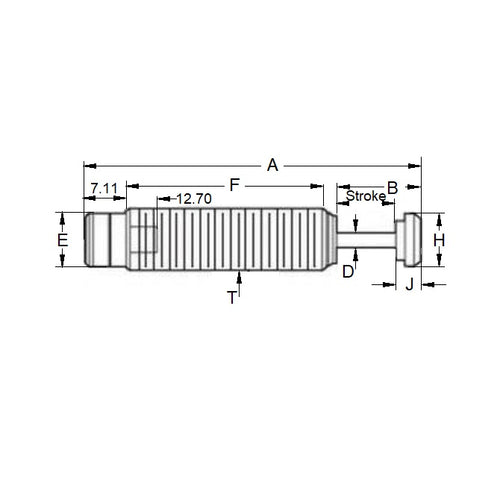

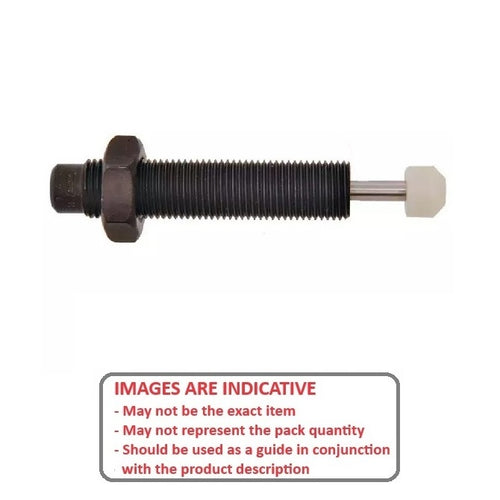

      ACE0900RSDiagramACE0900RSImage
