Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

ACE9254RS - Datasheet

ACE

Category Information

Shock Absorbers - Soft Contact Self-Compensating

Soft Contact Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 40.13 mm
    • Thread (T) 1-12
    • Length (A/F) 188.98 / 129.54 mm
    • Shaft Diameter (D) 6.35 mm
    • Effective Weight Soft Contact 544.31 - 1950.45 KG
    • Effective Weight Self-Compen 340.19 - 2086.52 KG
    • Wrench Flat (EE) 22.23 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-9254
      • ACE9254
      View full details

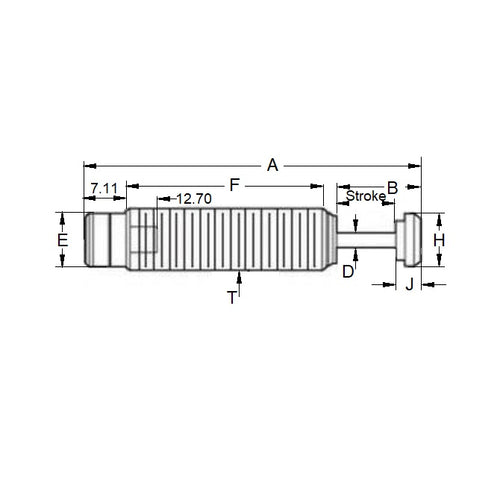

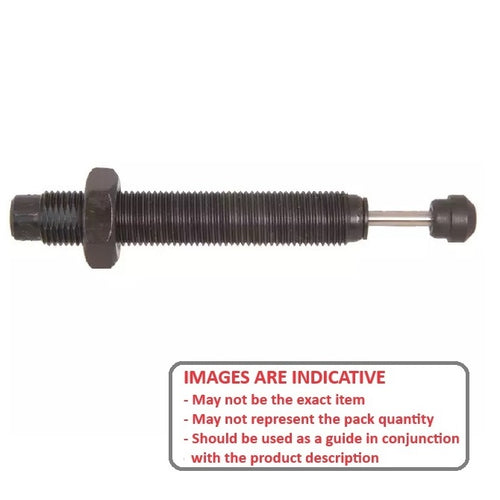

      ACE9254RSDiagramACE9254RSImage
