REM-048-L-CT - Datasheet
ENQUIRE
Category Information

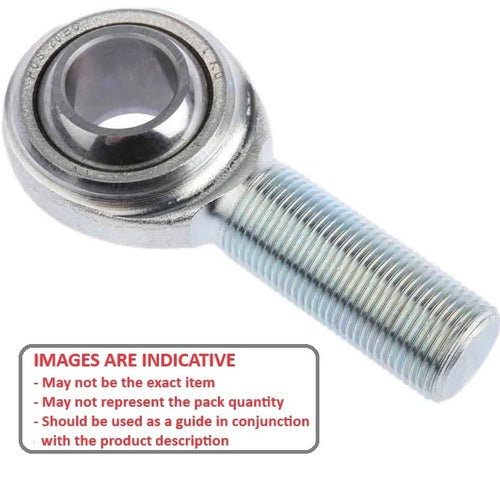

Rod Ends - Male - Steel - Tight Fit PTFE LinedTight Fit PTFE Lined Steel Male Rod Ends. Imperial and Metric. Tight fit (Minimal ball clearance) / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

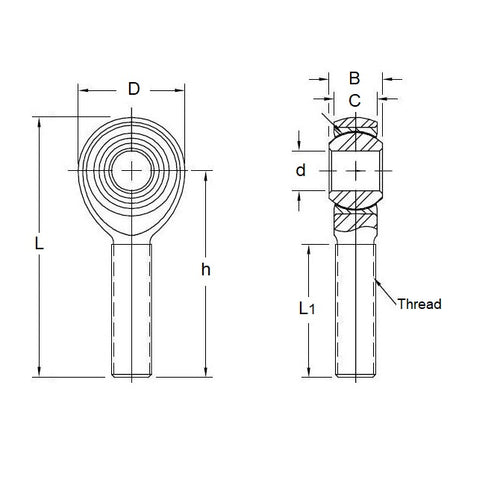

Product Data
- Eye Size (d1) : 4.826 mm
- Overall Length (L) 39.70 mm
- Thread Size 10-32 UNF Left
- Min. Thread Length (l2) 19.05 mm
- Head Width (W) 6.35 mm
- Eye Width (W1) 7.92 mm
- Head Diameter (D) 15.88 mm
- Centre Height (l1) 31.75 mm
- Material Steel with PTFE Lined Raceway
Product Compliance and Data
Additional Resources
Cross References
- 2458K11-LEFT
- MTR DIM3L
- KWK TMB3L
- 2458K11LEFT
