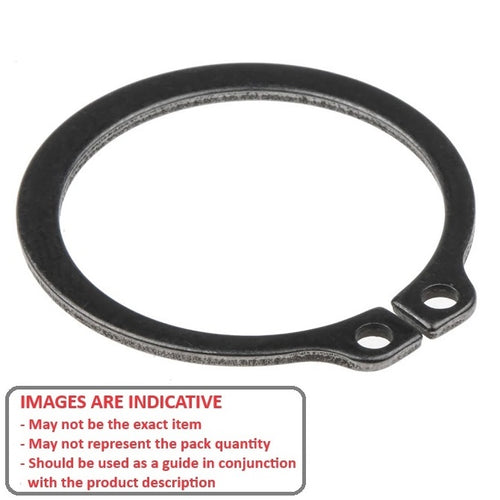

CCE-03900-C - Datasheet
MBA
Category Information
Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data

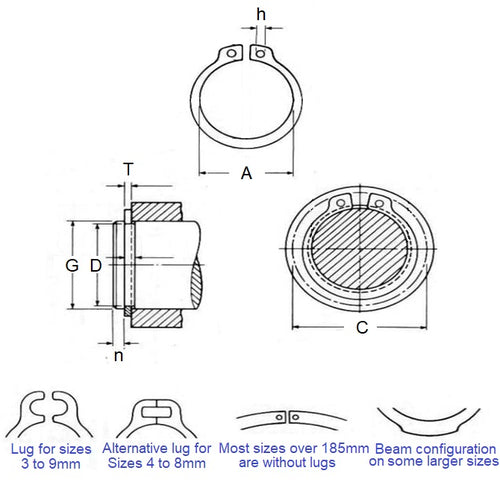

- Shaft Diameter (Ds) : 39.00 mm
- Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.06
(Equiv. 0.069 in.) - Groove Dia. (Dg)
36.75
mm
+ 0.00 / - 0.25
(Equiv. 1.447 in.) - Approx. Loose Circlip ID (A) 35.90 mm
- Groove Width (W) 1.85 mm
- Min. Lug Diameter (h) 2.50 mm
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-039
- Seeger® A-039
- Seeger® A39X1.75
- Bossard® BN818-039
- Waldes® D1400-039
- Huyett® DSH-039
- NoCor® DSH-039
- Rotor Clip® DSH-039
- BN818039
- A039
- D1400-0390
- D1400039
- D14000390
- 471039
- DSH039
