Miniature Bearings Australia

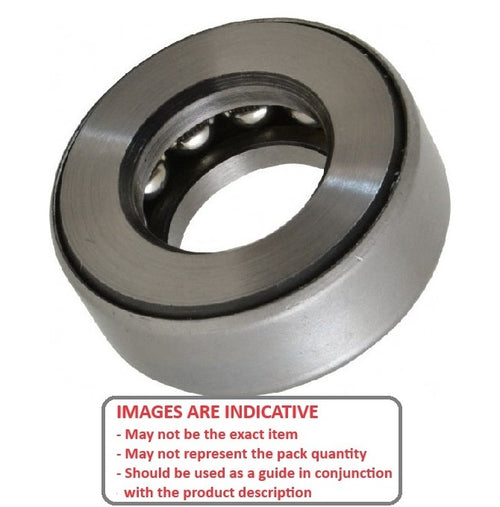

T-0381-0659-BND - Datasheet
MBA
Category Information
Bearings - Thrust Ball - BandedBanded Thrust Ball Bearings. 3 Piece Thrust Bearings Banded Type
- Thrust ball bearings provide for axial loads. They are designed to handle forces that push or pull along the axis of a rotating shaft
- Commonly used in automotive, electric motors, marine propulsion, pumps and compressors, aerospace applications, industrial machinery, and wind turbines.
- An expanded range may be available on special order. Please enquire.
Product Data

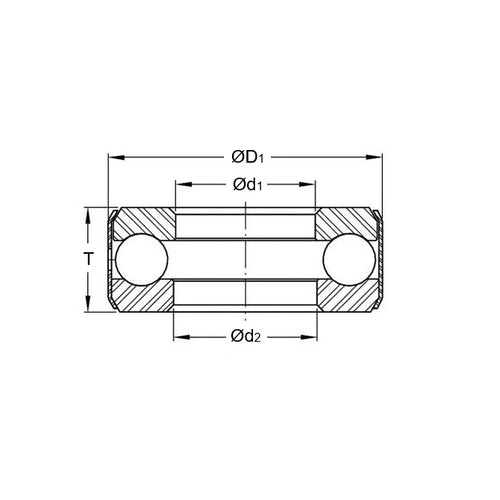

- Shaft Diameter (d1) : 38.100 mm
- O.D. (D1) 65.888 mm
- Thickness (T) 15.875 mm
- Bore (d2) 38.890 mm
- Dynamic Load Capacity 3438 kgf
- Static Load Capacity 8170 kgf
- Max. Speed 2800 RPM
- Information Unground Banded Thrust Bearing
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- 60715K29
- NICE® 621-V
- NICE® 621-VBF18
- Reid Tool® SKF-9120
- S9912Y-TB150259
- S9912YTB150259
- SKF9120
- 621V
