MLF-191C-S6 - Datasheet

MBA

Category Information

Mounts - Levelling Socket - Standard - 316 Stainless

316 Stainless Standard Levelling Socket Mounts. Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size (A) : 3/4-10 UNC (19.05mm)
  • Base Diameter (D) 76.2 mm
  • Foot Height (C) 38.1 mm
  • Min. Thread Depth 15.8 mm
  • Base Height (E) 12.70 mm
  • Load Rating 3350 Kg
  • Hex Flats (B) 26.99 mm
  • Material Stainless Steel 316 (Similar to A4, 18-10)
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 6103K158
    • Reid Tool® LSS-3
    • LSS3
    • MLF3350191CS6
    • MLF3360191CS6
    View full details

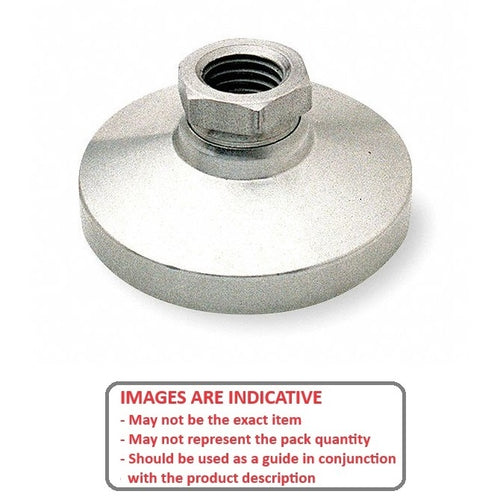

    MLF-191C-S6DiagramMLF-191C-S6Image
