KF095C-050-7L-SP - Datasheet
MBA
Category Information

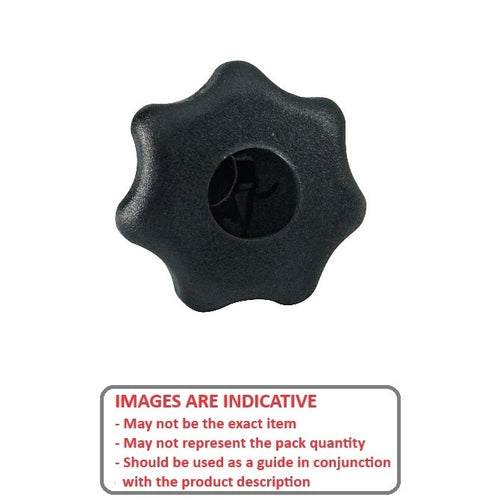

Knobs - Lobe - Seven Lobe - Female - StandardStandard Female Seven Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

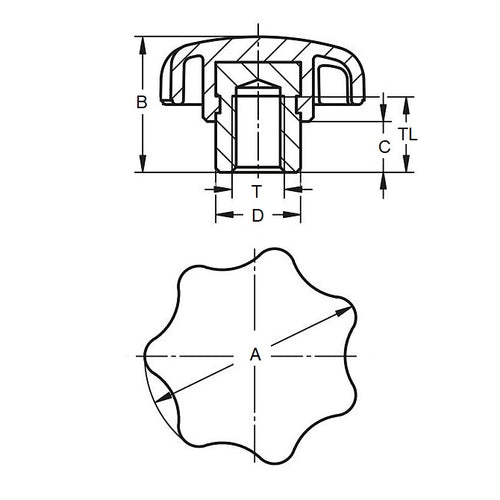

- Thread Size : 3/8-16 UNC (9.53mm)
- Head Diameter (A) 50.04 mm
- Thread Length 18.0 mm
- Colour Black
- Hub Diameter (C) 19.05 mm
- Hub Length (D) 11.94 mm
- Knob Height (B) 32.00 mm
- Material Plated Steel Hub
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® KBP-300
- KBP300
