SPANC-095C-041 - Datasheet

MBA

Category Information

Spring Anchors - Steel

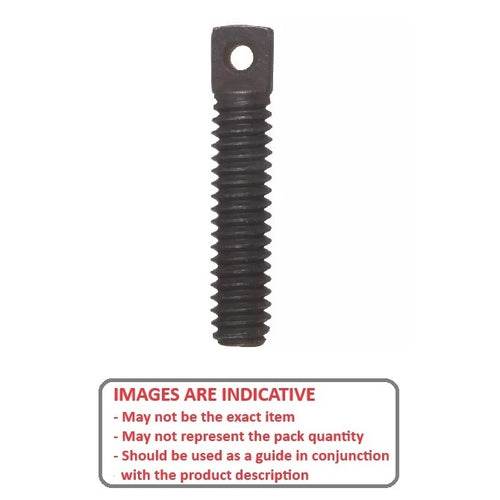

Steel Spring Anchors. C-12114 steel selection. Black oxide finish.

  • An economical way to secure the ends of extension springs, and provide easy adjustment.

Product Data

  • Thread : 3/8-16 UNC (9.53mm)

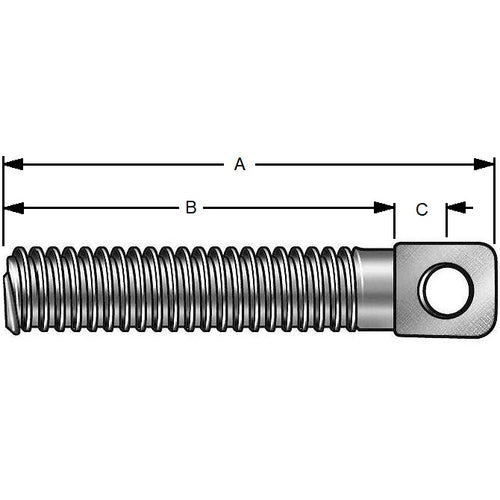

  • Overall Length (A) 41.148 mm
  • Thread Length (B) 28.575 mm
  • Thread to Centre Eye (C) 4.572 mm
  • Hole Size 4.318 mm
  • Load 378 Kg
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 9634K25
  • CSA90RS
