RP036-0191-C - Datasheet
MBA
Category Information

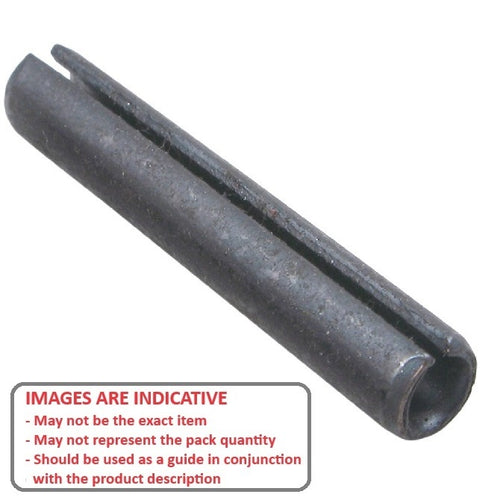

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data

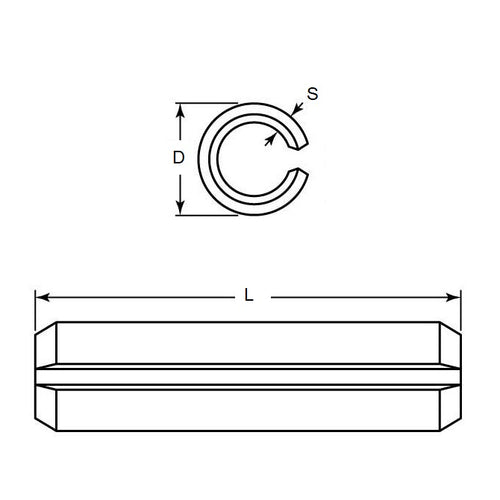

- Nominal Diameter (D) : 3.56 mm
- Length (L) 19.05 mm
- Free Diameter 3.92 mm
- Thickness (S) 0.75 mm
- Chamfer Length (cL) 0.60-0.80 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- 98296A203
- Huyett® SPP-140-0750
- NoCor® SPP-140-0750
- SPP1400750
