REF-030-R-CB - Datasheet
MBA
Category Information

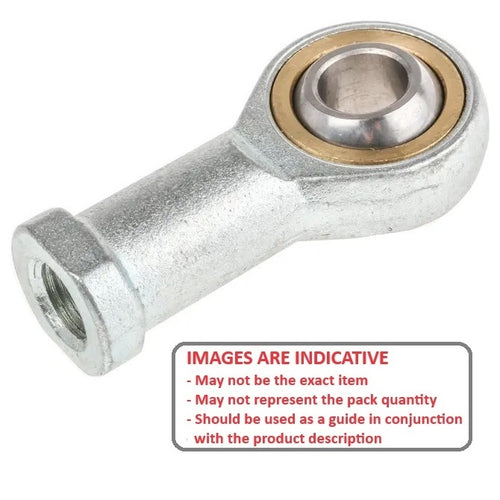

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

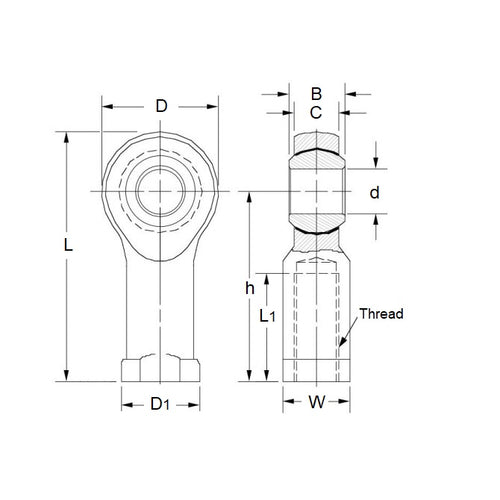

Product Data
- Eye Size : 3 mm
- Overall Length 27.00 mm
- Thread Size M3x0.5 Right
- Thread Length 10.00 mm
- Head Width 4.50 mm
- Eye Width 6.00 mm
- Head Diameter 12.00 mm
- Centre Height 21.00 mm
- Grease Nipple No
- Body Width / Flange Width 5.50 / 6.50 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- IKO PHS-3
- Nachi® PHS-3
- PHS3
- PR-3
- PR3
