RR1125RS - Datasheet

MBA

Category Information

Rollers - Drive

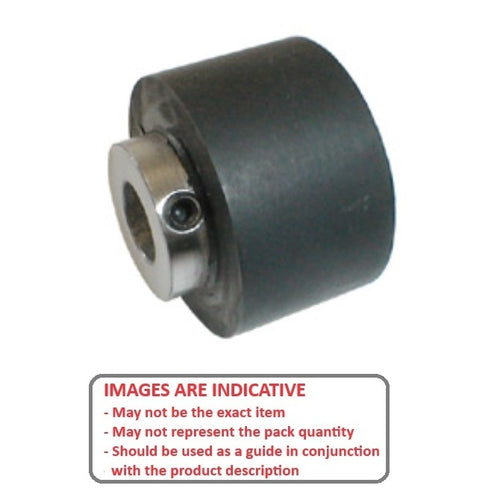

Drive Rollers. Neoprene 60 durometer black ground outside diameter drive rollers

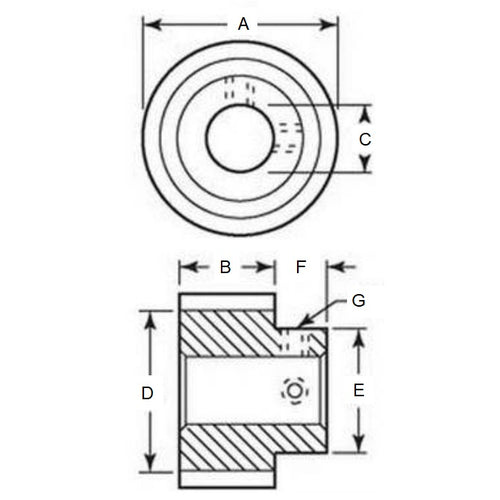

    Product Data

    • Outside Diameter (A) : 28.58 mm
    • Roller Width (B) 9.53 mm
    • Bore (C) 6.375 mm
    • Sleeve Diameter (D) 19.050 mm
    • Hub Diameter (E) 15.875 mm
    • Hub Height (F) 7.938 mm
    • Set Screw 8-32 UNC (2)
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® RR-1125
      • RR1125
