RSN-100-S02 - Datasheet

MBA

Category Information

Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel

Stainless Steel Heavy Duty Spiral Rings External Retaining Rings. AHE / WSM / AS3216 / RSN / MIL-R-27426A2 - Stainless Steel.

  • An expanded range may be available on special order. Please enquire.
  • Heavy duty design for use with NAS669-670 deep grooves in applications like double row and tapered roller bearings.
  • Requires no tools for removal.
  • Equivalent to Associated Spring: AHE, Smalley: WSM, Spirolox and Ramsey: RSN, Aerospace: AS3216, MIL-R-27426A2

Product Data

  • Shaft Diameter (Ds) : 25.40 mm
  • Clip Thickness (T) 1.07 mm +/- 0.05
    (Equiv. 0.042 in.)
  • Groove Dia. (Dg) 23.88 mm
  • Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33
  • Radial Wall (S) Approx. 2.16 mm +/- 0.10
  • Groove Width (W) 1.21 mm +/- 0.07
  • Approx. Loose Clip OD 27.94 +/- 0.04
  • Groove Depth (d) 0.76
  • Material Stainless Steel 302/304 (Similar to A2, 18-8)
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 91650A460
  • Associated Spring® AHE-100-S02
  • Huyett® RSN-100-S02
  • Smalley® RSN-100-S02
  • Spirolox® RSN-100-S02
  • Smalley® WSM-100-S02
  • RSN100S02
  • AHE100S02
View full details

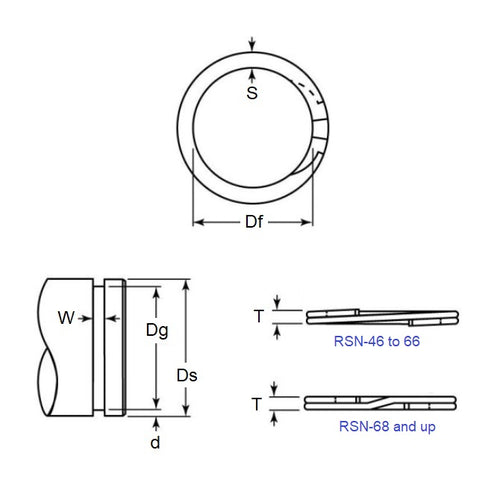

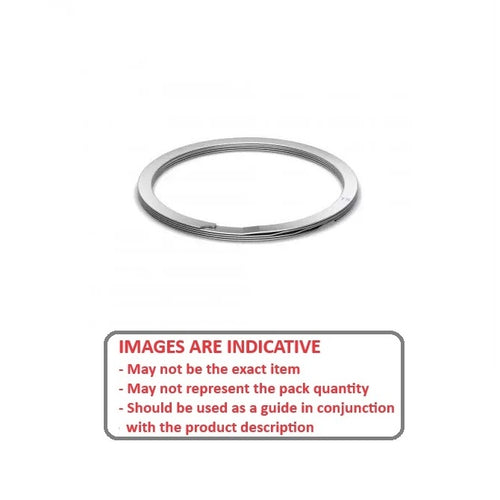

RSN-100-S02DiagramRSN-100-S02Image
