CP-254K-254K-51-076-R-CG - Datasheet

MBA

Category Information

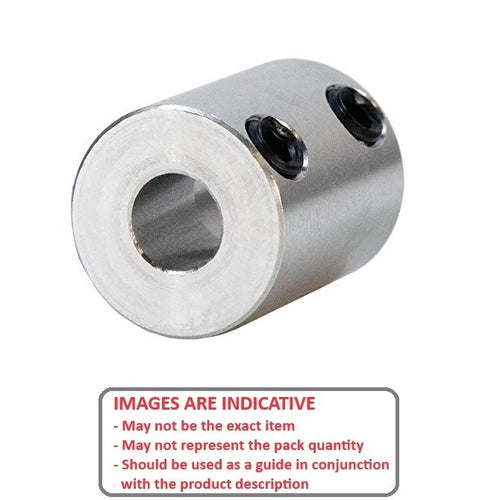

Couplings - Rigid - Set Screw

Set Screw Rigid Couplings. 0.35 to 5.1 Nm. Includes steel, stainless steel, brass and aluminium.

  • An expanded range may be available on special order. Please enquire.
  • Quality Class Precision: Bore Tolerance +0.013 / - 0.000 concentric within 0.0127mm T.I.R.
  • Quality Class Commercial: Bore Tolerance +0.051 / -0.000.

Product Data

  • Bore (b1) : 25.400 (Keyed 6.35mm Sq) mm
  • Bore (b2) Keyed 25.4 mm
  • OD (D) 50.800 mm
  • Length (L) 76.200 mm
  • Bore Depth (B) Through Bore mm
  • Quality Class Commercial

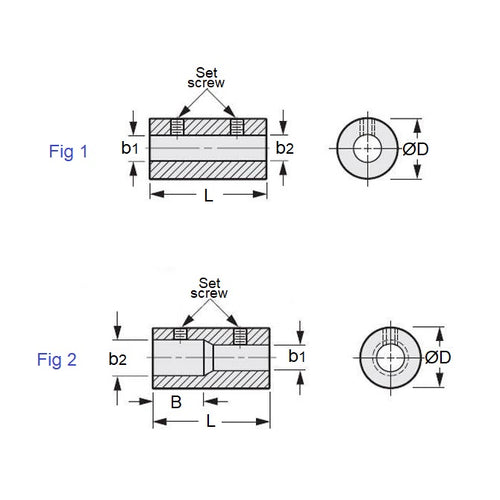

  • Figure Fig. 1
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 6412K45
    • NoCor® SC-1000
    • Reid Tool® SC-1000
    • SC1000
