GM-051-D16-127-C - Datasheet
MBA
Category Information

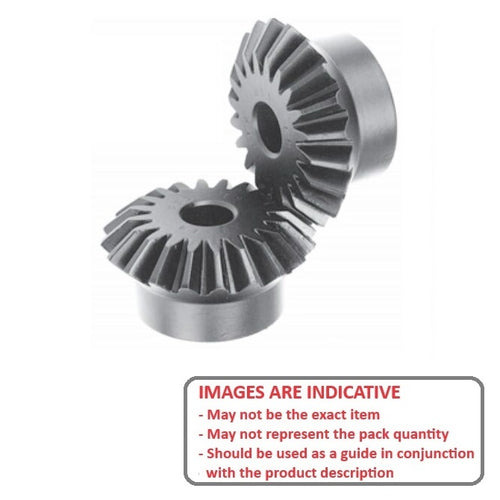

Gears - Mitre - 16DP Steel16DP Steel Mitre Gears. 1:1 Ratio. 20 Degree Pressure Angle - Unhardened Steel
- An expanded range may be available on special order. Please enquire.
- Mitre gears are used with a matching gear of the same pitch and number of teeth.
- This provides a 1 to 1 ratio on a 90 Degree angle.
- See Gears - Bevel for other ratios.

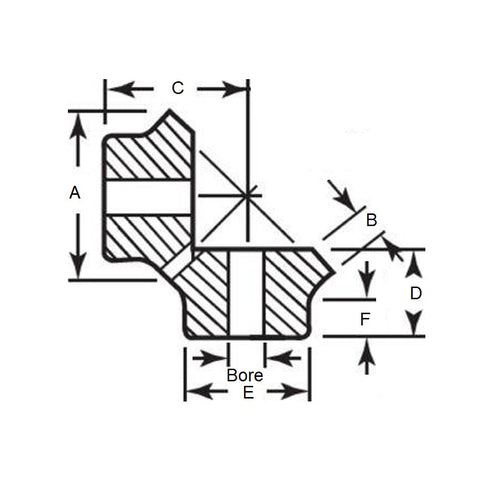

Product Data
- Number of Teeth : 24
- Pitch Diameter (pd) 50.800 mm
- Bore (d) 12.700 mm
- Overall Length (L) 31.090 mm
- Hub Diameter (hd) 33.274 mm
- Each
- Hub Projection (F) 17.526 mm
- Mounting Distance (C) 47.625 mm
- Face Width (B) 11.176 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® GE-113
- Boston Gear® L113Y
- GE113
