Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel

Carbon Steel Heavy Duty Spiral Rings Internal Retaining Rings. Includes AHI / WHM / AS3215 / RRN / MIL-R-27426B2 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Heavy duty design for use with NAS669-670 deep grooves in applications like double row and tapered roller bearings.
  • Requires no tools for removal.
  • Equivalent to Associated Spring: AHI, Smalley: WHM, Spirolox and Ramsey: RRN, Aerospace AS3215, MIL-R-27426B2

Product Data

  • Housing Bore (B) : 23.83 mm
  • Clip Thickness (T) 1.07 mm +/- 0.05
    (Equiv. 0.042 in.)
  • Groove Dia. (Dg) 25.40 mm
  • Approx. Loose Circlip OD (Dr) 25.43 mm + 0.33 / - 0.00
  • Radial Wall (S) Approx. 2.16 mm +/- 0.10
  • Groove Width (W) 1.21 mm +/- 0.08
  • Approx. Loose Clip ID 21.11 +/- 0.04
  • Groove Depth (d) 0.79
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Associated Spring® AHI-093
  • Huyett® RRN-093
  • Smalley® WHM-093
  • WHM093
  • AHI093
View full details

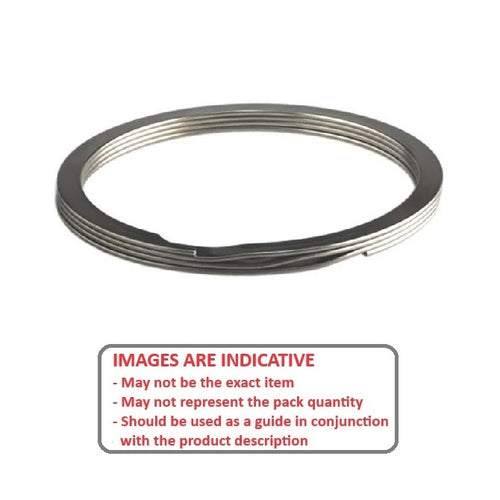

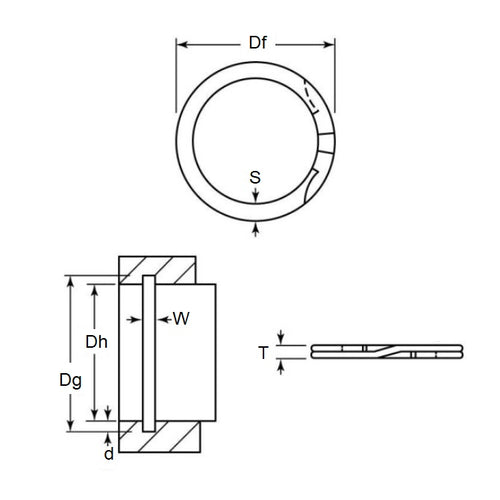

RRN-093DiagramRRN-093Image
