TLB-1008-0222 - Datasheet
MBA
Category Information

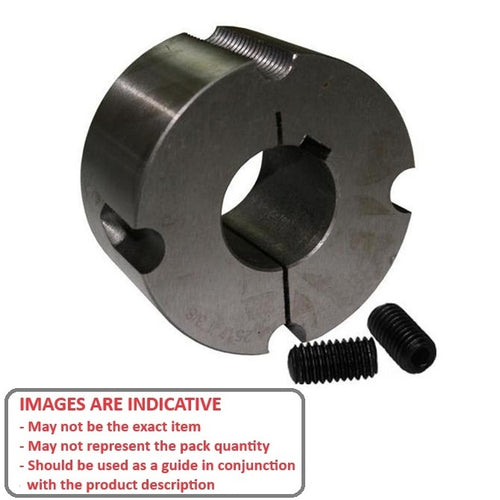

Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.

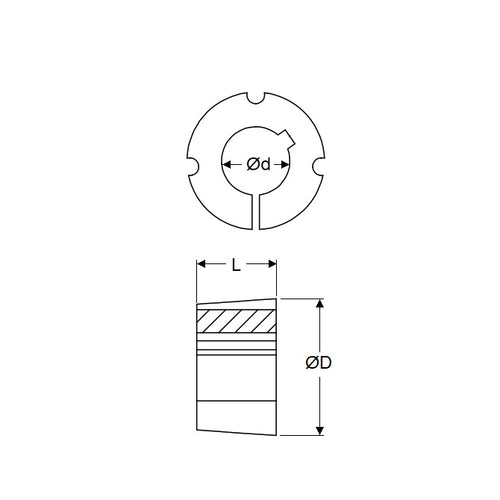

Product Data
- Bore (d) : 22.225 mm
- Large End Dia. (D) 35.0 mm
- Length (L) 22.2 mm
- Taperlock Series 1008
- No of Screws 2
- Screw Size 1/4x1/2 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 57095K114
- TLB100878
- TLB-1008-7-8
