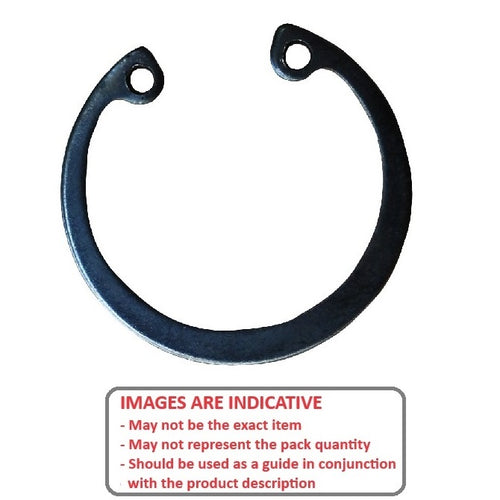

CCI-21500-C - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.

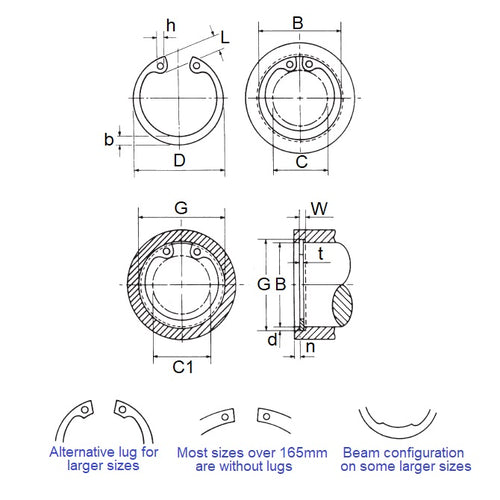

Product Data
- Housing Bore (B) : 215.00 mm
- Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.12
(Equiv. 0.197 in.) - Groove Dia. (Dg)
221.00
mm
+ 0.72 / - 0.00
(Equiv. 8.701 in.) - Approx. Loose Circlip OD (Dr) 227.00 mm + 1.70 / - 0.72
- Groove Width (W) 5.15 mm + 0.20 / - 0.00
- Clearance in Bore (C) 185.20 mm
- Clearance in Groove (C1) 192.00 mm
- Min. Lug Diameter (h) 4.00 mm
- Min. Extension (n) 9.00
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 472-215
- Bossard® BN-822-215
- Waldes® D1300-215
- Huyett® DHO-215
- NoCor® DHO-215
- Rotor Clip® DHO-215
- Seeger® J215
- Seeger® J-215
- Seeger® J215-WAS
- Seeger® J215X5
- Seeger® NZT.J215
- BN822215
- J215WAS
- D1300215
- DHO215
- 472215
