BTU0020-009-TS-C - Datasheet
MBA
Category Information

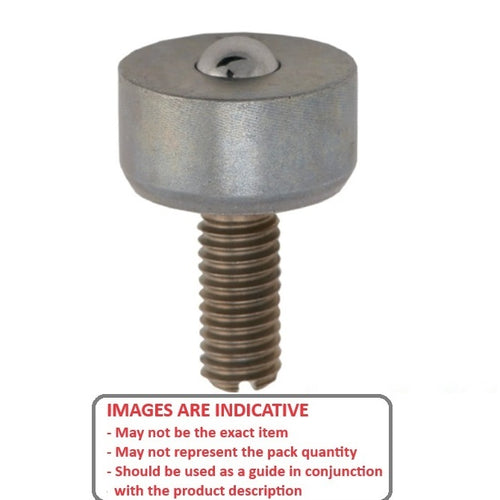

Ball Transfer Units - Screw Stem - Steel - PrecisionPrecision Steel Screw Stem Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Applications include measuring equipment and light weight coil handlers. Guides for small linear motion (eg. photocopier slides). Transfer of material in clean rooms.
- Max Load is applicable when used as a transfer, not as a castor
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Max Load : 20 kg

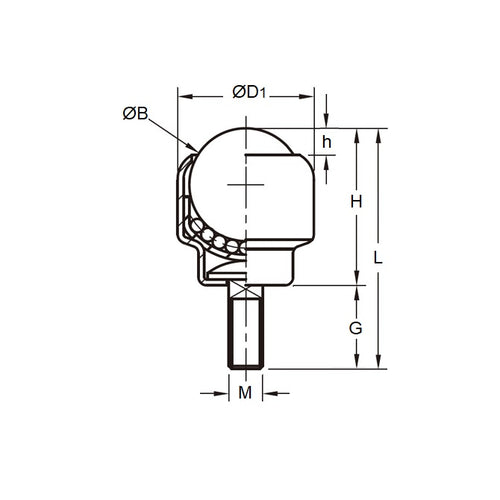

- Height from Base (B) 9 mm
- Body Diameter (D) 13 mm
- Overall Height (L) 24.0 mm
- Ball Diameter 4.8 mm
- Body Height (H) 9.0 mm
- Thread M6
- Stud Length (Sl) 15.0 mm
- 1 Type
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BTIS05N
- BTIS-05N
