REF-200-L-CB-F - Datasheet
MBA
Category Information

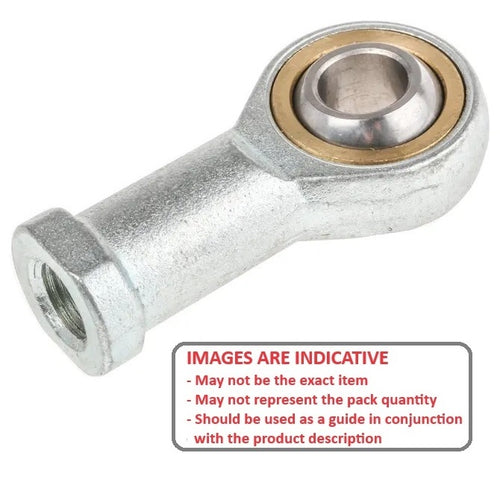

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

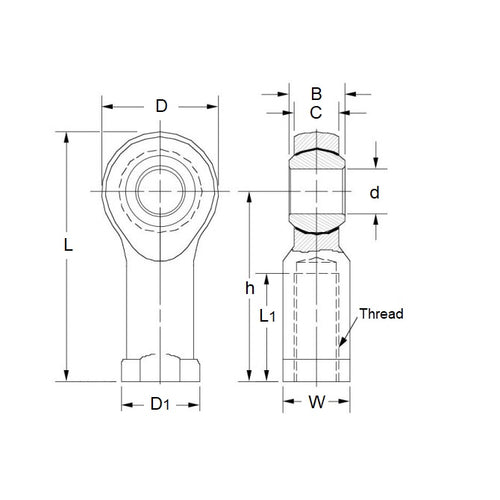

Product Data
- Eye Size : 20 mm
- Overall Length 100.00 mm
- Thread Size M20x1.5 Left
- Thread Length 40.00 mm
- Head Width 18.00 mm
- Eye Width 25.00 mm
- Head Diameter 46.00 mm
- Centre Height 77.00 mm
- Grease Nipple Yes
- Body Width / Flange Width 32.00 / 37.00 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- ASAHI® JAF20L
- KWK KF20L
- IKO PHS20L
- Nachi® PHS-20L
- NTN® SFI-20L
- SFI20L
