CMM020-30-060M-R60 - Datasheet

MBA

Category Information

Mounts - Bobbin - Male

Male Bobbin Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 20.0 mm
  • Body Height (H) 30.0 mm
  • Thread Size M6x1
  • Shore Hardness 60
  • Thread Length (L1) 18.0 mm
  • Compression Load 9.6 (21) Kg (lbs)
  • Deflection 2.6 mm
  • Max Shear Load 3.1 (6.8) Kg (lbs)
  • Configuration Male to Male
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-VV2030-18
  • CVV203018
  • V12Z02MMM203016
View full details

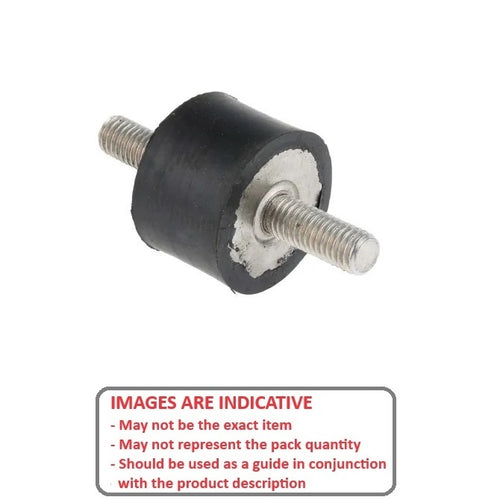

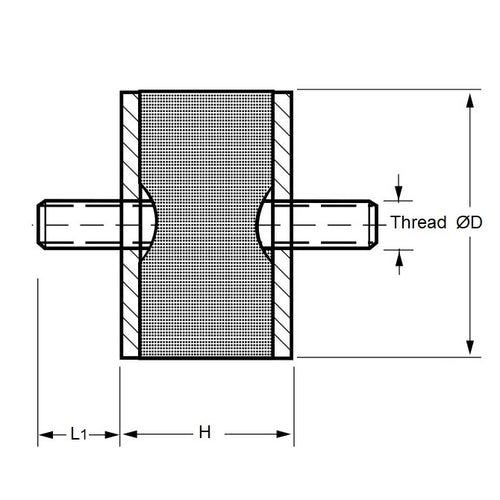

CMM020-30-060M-R60DiagramCMM020-30-060M-R60Image
