RP025-0220-C - Datasheet
SSA
Category Information

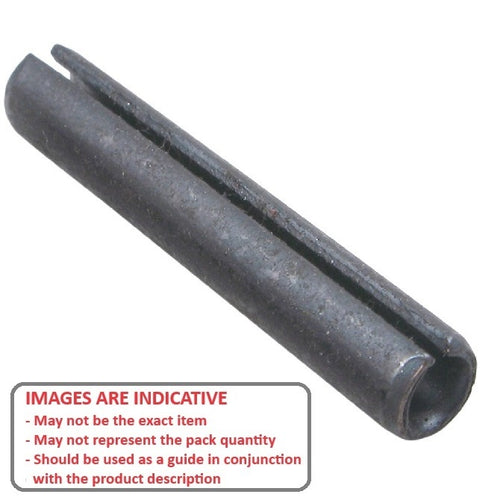

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins

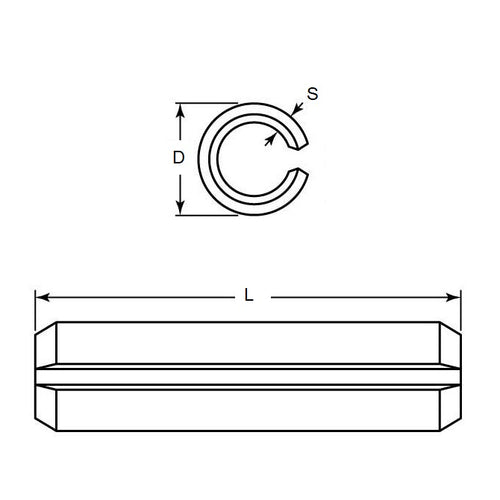

Product Data
- Nominal Diameter (D) : 2.50 mm
- Length (L) 22.00 mm
- Free Diameter 2.75 mm
- Thickness (S) 0.50 mm
- Chamfer Length (cL) 0.40-0.60 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Steel CS70
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802078
- NoCor® SPM-025-022
- NoCor® SPMP-025-022
- Brighton Best® Spring-Pin-M2.5x22
- SAP2522
- SAP2.5-22
- SpringPinM25x22
- MD1481MQB025X022
- SPMP025022
- SPM025022
