W0191-LE-032-014-CZ - Datasheet
MBA
Category Information

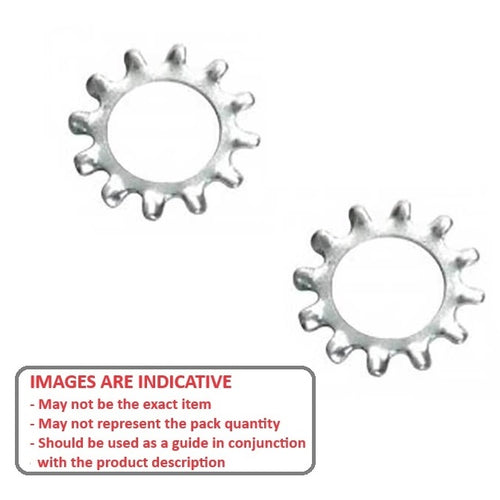

Washers - Lock - External Tooth - Spring SteelSpring Steel External Tooth Lock Washers. Spring steel, external toothed selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.

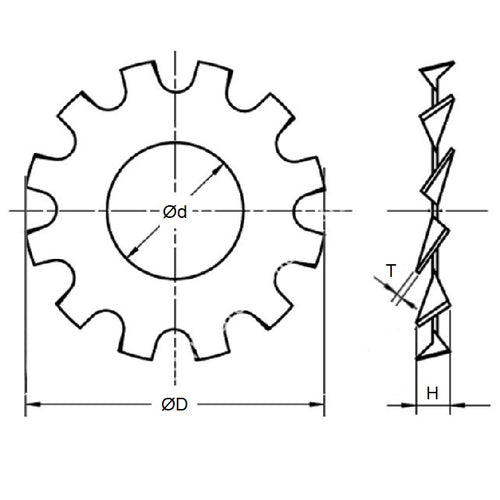

Product Data
- Nominal Inside Diameter : 19.05 mm
- Outside Diameter 32 mm
- Material Thickness (T) 1.40 mm
- Nominal Screw Size M19, 3/4
- Actual ID (Ref) 19.5 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1000475
- 91114A036
- WASCA WLESZNP34
