Miniature Bearings Australia
BP0191-0286-0445-BSHH - Datasheet
MBA
Category Information

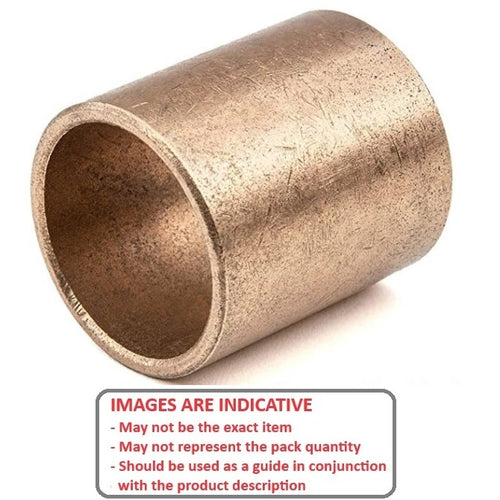

Bushes - Unflanged - Bronze - SinteredSintered Bronze Unflanged Bushes. Oil impregnated sintered bronze bushes.
- An expanded range may be available on special order. Please enquire.
- Precision items show an allowable Load Speed Rating in Newtons times RPM.
Product Data
- Nominal Inside Diameter (d)
:
19.050
mm
+ 0.051 / + 0.076
(Equiv. 0.75 in.) - Nominal Outside Diameter (D)
28.575
mm
+ 0.051 / + 0.076
(Equiv. 1.125 in.) - Length (s)
44.450
mm
+/- 0.190
(Equiv. 1.75 in.) - Material Bronze SAE 841 Sintered
Product Compliance and Data
Additional Resources
- DU Bush Material Information
- General Bushes Catalogue
- Sintered Bronze Products Catalogue
- Solid Bronze Bushes catalogue
Cross References
- Oilite® AA-1106-1
- Oilube® AA-1106-1
- Oilite® AA1106-1
- Bunting® B-1218-14
- Symmco® SS-2436-28
- BP019102860445BS
- BP019102860445BSH
- SS243628
- A7B4-SP243614
- A7B4SP243614
- B121814
- AA11061
