Miniature Bearings Australia
PFL-XL-015-C - Datasheet
MBA
Category Information

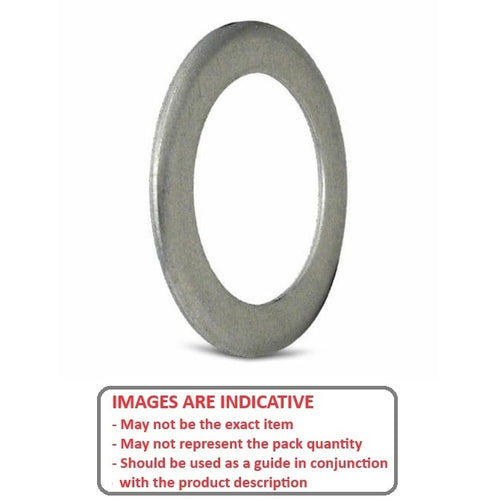

Pulley Flanges - Timing - Suit 5.080mm XL Series - Carbon SteelCarbon Steel Suit 5.080mm XL Series Timing Pulley Flanges. Use with timing pulley stock to custom make your own pulleys
- Timing pulley flanges are available in aluminium and carbon steel, and suit the timing pulley stock sizes listed on this site.
- These flanges provide a quick low cost way to cap the sides of special size timing pulleys made from stock lengths, without having to machine special flanges in the design.

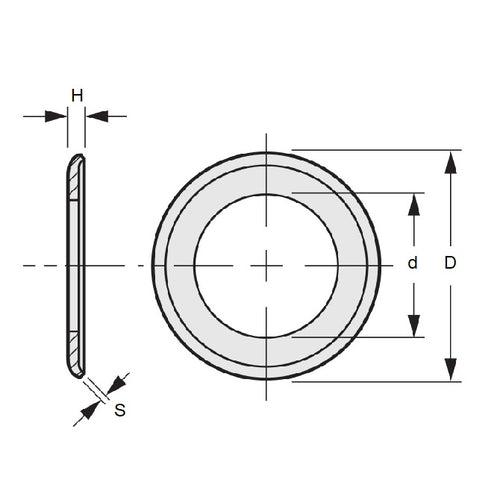

Product Data
- Inside Diameter (d) : 19.000 mm
- Outside Diameter (D) 30.20 mm
- Suits Pulley Grooves 15 No.
- Width (H) 1.65 mm
- Thickness (S) 1.02 mm
- Material Carbon steel
Product Compliance and Data
Additional Resources
Cross References
- Gates® 15XL-FS
- 15XLFS
- A6C2M15FS
- A6C2M15FSX
- A6C215FSX
- A6C2-15FSX
