Miniature Bearings Australia
SUG-526RS - Datasheet
MBA
Category Information

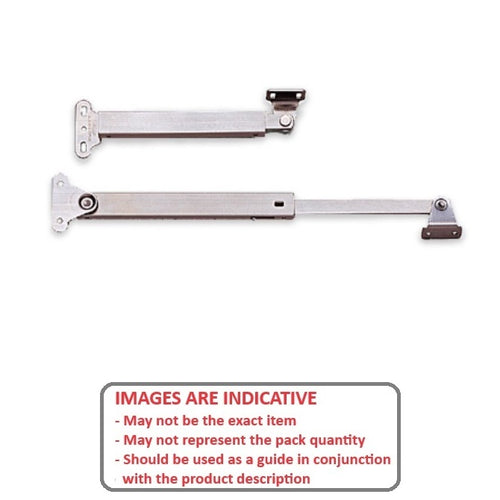

Lid Stay - Stainless SteelStainless Steel Lid Stay. 15kg load capacity. Holds lid in fully opened position. Lift up to release.
Product Data

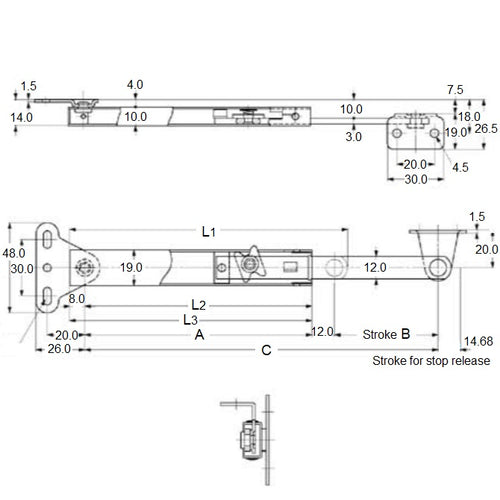

- Length 1 (L1) : 184.94 mm
- Length 2 (L2) 157.99 mm
- Length 3 (L3) 165.99 mm
- A 169.86 mm
- Stroke (B) 100.00 mm
- C 269.88 mm
- Door Height 12.59 to 19.69 mm
