CCE-18000-C - Datasheet
MBA
Category Information

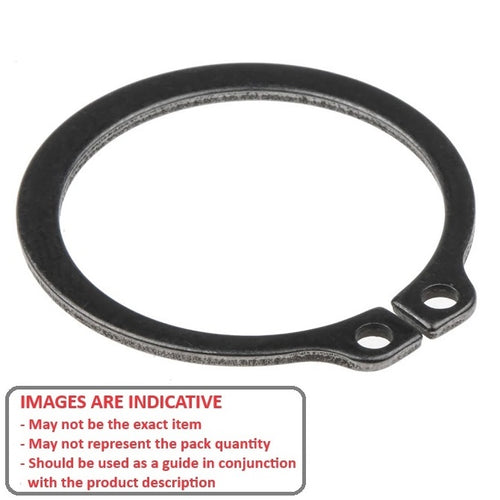

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data

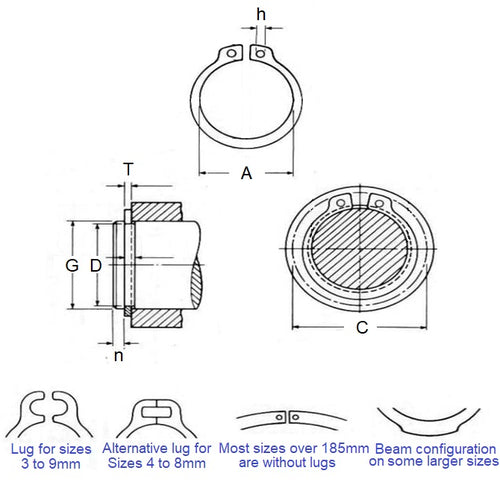

- Shaft Diameter (Ds) : 180.00 mm
- Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.) - Groove Dia. (Dg)
175.00
mm
+ 0.00 / - 0.63
(Equiv. 6.89 in.) - Approx. Loose Circlip ID (A) 170.50 mm
- Groove Width (W) 4.15 mm
- Clearance on Shaft (C1) 204.00 mm
- Clearance in Groove (C1) 210.00 mm
- Min. Lug Diameter (h) 4.00 mm
- Min. Extension (n) 7.50
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-180
- 98541A307
- Seeger® A180
- Seeger® A-180
- Seeger® A180-WAS
- Seeger® A180X4
- Bossard® BN818-180
- Waldes® D1400-180
- Huyett® DSH-180
- NoCor® DSH-180
- Rotor Clip® DSH-180
- Seeger® NZT.A180
- BN818180
- A180WAS
- D1400-1800
- D1400180
- D14001800
- 471180
- DSH180
