GM-038-D12-127-C - Datasheet
MBA
Category Information

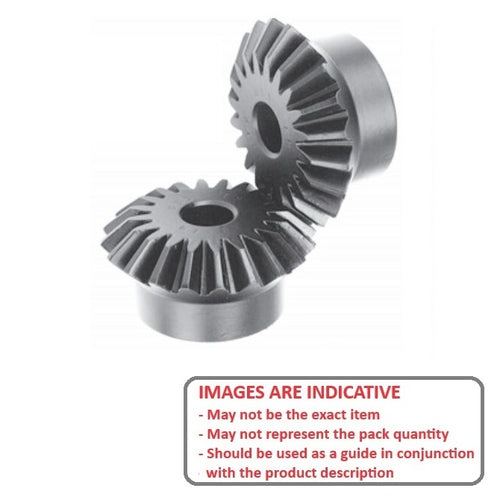

Gears - Mitre - 12DP Steel12DP Steel Mitre Gears. 1:1 Ratio. 20 Degree Pressure Angle - Carbon steel
- An expanded range may be available on special order. Please enquire.
- Mitre gears are used with a matching gear of the same pitch and number of teeth.
- This provides a 1 to 1 ratio on a 90 Degree angle.
- See Gears - Bevel for other ratios.

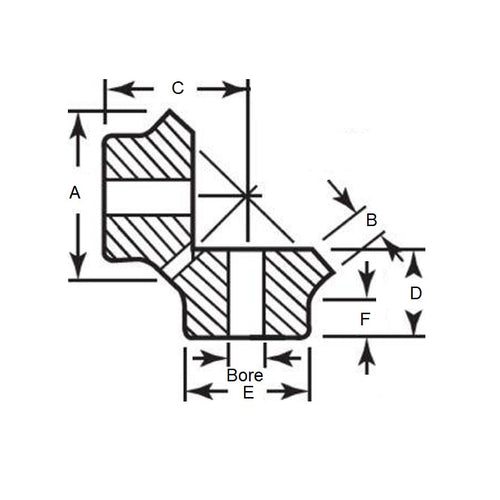

Product Data
- Number of Teeth : 18
- Pitch Diameter (pd) 38.100 mm
- Bore (d) 12.700 mm
- Overall Length (L) 25.933 mm
- Hub Diameter (hd) 31.750 mm
- Each
- Hub Projection (F) 16.002 mm
- Mounting Distance (C) 38.100 mm
- Face Width (B) 8.382 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® GE-127
- Boston Gear® L127Y
- GE127
