6903-C3-T9H-ACO - Datasheet

ENQUIRE

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Bearings in this group have various types of high speed cages.
Speed ratings range from 20 percent to 80 percent increase on standard cage types.
See individual datasheets, available on request.
Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

Open Standard Bearing

ID (d) : 17.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.669 in.)
O.D. (D) 30.000 mm _{+ 0.000 / - 0.010}
(Equiv. 1.181 in.)
Width (B) 7.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.276 in.)
Precision Grade Abec 1
Closure Type Open
Bearing Type Radial
Material Chrome Steel SAE 52100 - High Speed Polyamide Cage

Lubrication Type Oil
Lubrication Name ACO Anti Corrosion Oil Film
Basic Part 6903
Limiting Speed 44800
Cage Type Polyamide
Static Load Rating KGf 262
Dynamic Load Rating KGf 468
Radii 0.30 mm
Inner Shoulder (UI) 21.00mm
Outer Shoulder (UO) 26.80 mm
Number of Balls 11
Clearance C3 (11 to 25)
Precision Grade Abec 1
Closure Type Open
Max Temperature 120 Deg. C

Country of Origin: US

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
ASP® - 61 - Replacement Rear Bearing
ASP® - 61 All Models - Bearing
ASP® - 75 - Replacement Rear Bearing
ASP® - 75 All Models - Bearing
Enya® - 60X 2Cand3 - Replacement Rear Bearing
Enya® - X 2Cand3 - 240 - Bearing
Fitzpatrick - 61 - Replacement Rear Bearing
Fitzpatrick - 61 With Side Exhaust and ABC Engine - Bearing
Fox® - 36 All Models - Bearing
Fox® - 60 -74 Eagle IV - Replacement Rear Bearing
Fox® - Eagle IV - 46 - Bearing
HP - 61 Gold Cup - Replacement Rear Bearing
HP - Gold Cup F - 21 - Bearing
Irvine® - 15 All Models - Bearing
Irvine® - 40 All Models - Bearing
Irvine® - 46 Red - 2 Stroke - Replacement Rear Bearing
Irvine® - 53 - 2 Stroke - Replacement Rear Bearing
Irvine® - 53 ABC - 12 - Bearing
Irvine® - 53 ABC - 150 - Bearing
Irvine® - 53 All Models - Bearing
Irvine® - 61 - 2 Stroke - Replacement Rear Bearing
Irvine® - MK3 - 72 - Bearing
Irvine® - Old - 15 - Bearing
Irvine® - Old - 53 - Bearing
Jett® - Fan Jet - 25 - Bearing
Jett® - Fire - 40 - Bearing
Jett® - Fire - 50 - Bearing
Jett® - Fire - 95 - Bearing
Jett® - Heli - 90 - Bearing
Jett® - Sport - 105 - Bearing
Jett® - Sport - 12 - Bearing
Jett® - Sport - 40 - Bearing
K.B - 40 All Models - Bearing
K.B - 7.5 -11 Outboard - Replacement Rear Bearing
K.B - 72 -82 and 91 Violet - Replacement Rear Bearing
K.B - 8702 - 21 - Bearing
K.B - DF - 82 - Bearing
K.B - OB New - 7.5 - Bearing
K.B - Outboard Late Model Marine - 3.5 - Bearing
K.B - Outboard Marine - 40 - Bearing
K.B - Outboard Marine Late Model - 90 - Bearing
K.B - Pro - 67 - Bearing
K.B - SS Marine - 7.5 .45CC - Bearing
K.B - Violet - 3.5 - Bearing
K.B - Violet - 7.5 - Bearing
K.B - Violet - 72 - Bearing
K.B - Violet - 82 - Bearing
Magnum Power® - XL - 53 - Bearing
Magnum® - 61XL - 2 Stroke - Replacement Rear Bearing
Magnum® - 75XL - 2 Stroke - Replacement Rear Bearing
Magnum® - 80XL - 2 Stroke - Replacement Rear Bearing
MDS - 60 - Bearing
Moki® - 61 1980 TO 1992 - Replacement Rear Bearing
Moki® - All - 51 - Bearing
Moki® - All - 61 - Bearing
Nelson - 45 - 12 - Bearing
Nelson - 45 All Models - Bearing
Nelson - 65 All Models - Bearing
Nelson - 91 - Replacement Rear Bearing
Nelson - Quickie - 75 - Bearing
Nelson - Quickie - 91 - Bearing
OS Engines® - 61 FR ABC Special - Replacement Rear Bearing
OS Engines® - 61 FR Gold Head - Replacement Rear Bearing
OS Engines® - 61 FR RC Special - Replacement Rear Bearing
OS Engines® - 61 RF ABC-P RC-Pump - Replacement Rear Bearing
OS Engines® - 61 RF-H RC - Replacement Rear Bearing
OS Engines® - 61 RF-H RC W-7H - Replacement Rear Bearing
OS Engines® - 61 RF-H-P RC W-Pump - Replacement Rear Bearing
OS Engines® - 61 SF ABC RC W-Muffler - Replacement Rear Bearing
OS Engines® - 61 SF ABC RC-Pump - Replacement Rear Bearing
OS Engines® - 61 SF RC W-Muffler - Replacement Rear Bearing
OS Engines® - 61 SF-H ABC RC - Replacement Rear Bearing
OS Engines® - 61 SF-H ABC-P W-PMP - Replacement Rear Bearing
OS Engines® - 61 SF-H RC - Replacement Rear Bearing
OS Engines® - 61 SF-H RC W-7H - Replacement Rear Bearing
OS Engines® - 61 SF-H RC W-Pump - Replacement Rear Bearing
OS Engines® - 61 SF-P RC-Pump - Replacement Rear Bearing
OS Engines® - 61 VF-H ABC RC W-7H - Replacement Rear Bearing
OS Engines® - 61 VF-H RC W-7H Car - Replacement Rear Bearing
OS Engines® - FSR ABC - 61 - Bearing
OS Engines® - FSR Gold Head - 45 - Bearing
OS Engines® - FSR RC Special - 90 - Bearing
OS Engines® - FSR Ring ED - 108 - Bearing
OS Engines® - RF ABC RC - 40 - Bearing
OS Engines® - RF-H Pump - 21 - Bearing
OS Engines® - RF-H RC With 7H - 21 - Bearing
OS Engines® - RF-P - 61 - Bearing
OS Engines® - RF-P Ring Hanno Special - 61 - Bearing
OS Engines® - SF ABC RC W-Muffler - 61 - Bearing
OS Engines® - SF-HP RC - 46 - Bearing
OS Engines® - SF-P RC/Pump - 46 - Bearing
OS Engines® - VF-H ABC - 25 - Bearing
OS Engines® - VF-H RC With 7H - 25 - Bearing
Picco® - 40 All Models - Bearing
Picco® - 61 - 2 Stroke - Replacement Rear Bearing
Rossi® - 3 and 2 - 3.5 - Bearing
Rossi® - 40 -45 Air - Replacement Rear Bearing
Rossi® - 45 All Models - Bearing
Rossi® - 53 Glow Engine - 60 - Bearing
Rossi® - 60 3and2 - Replacement Rear Bearing
Rossi® - 60 FI RC - 61 - Replacement Rear Bearing
Rossi® - 60 RE - 61 ABC RE - Replacement Rear Bearing
Rossi® - ABC RE - 60 - Bearing
Rossi® - Air - 53 - Bearing
Rossi® - F1 RC - 21 C - Bearing
Rossi® - F1 RC - 81 - Bearing
Rossi® - R40T - 21 - Bearing
Rossi® - RE - 90 - Bearing
Saito® - 120 Old - Replacement Rear Bearing
Saito® - 270 - FA270T - FA300T - Bearing for Centre
Saito® - 4C New - 45 - Bearing
Saito® - 82 All Models - Bearing
Saito® - FA 100 - Bearing
Saito® - FA 150 - Bearing
Saito® - FA 80 - Bearing
Saito® - FA182TD - 100 - Replacement Rear Bearing
Saito® - Old - 30 - Bearing
Tower® - 61 BB ABC - 46 - Bearing
Tower® - 75 BB ABC - 15 - Bearing
Webra® - 28 All Models - Bearing
Webra® - 60 -61 Heli - Replacement Rear Bearing
Webra® - Heli - 32 - Bearing
Webra® - Heli - 80 - Bearing
Webra® - Speed 61/P5 - 40 - Bearing
Webra® - Speed P5 - 35 - Bearing
Webra® - Speed P5 - 40 - Bearing
YS - 2-C - 24.7 - Bearing
YS - 4-C - 140 - Bearing
YS - 60 -61 2C and 4C - Replacement Rear Bearing
YS - 91 All Models - Bearing

Cross References

BOSCH® 3600905019
WIB 61903-T9H
ISO 6903TWC3P13
ISO 6903-TW-C3-P13
ADR AY17-T9H
ADR AY17TW-C3-P13
61903T9H
6903T9HC3ACO
AY17TWC3P13
AY17T9H
6903 Basic Size Ref

View full details

6903-C3-T9H-ACODiagram

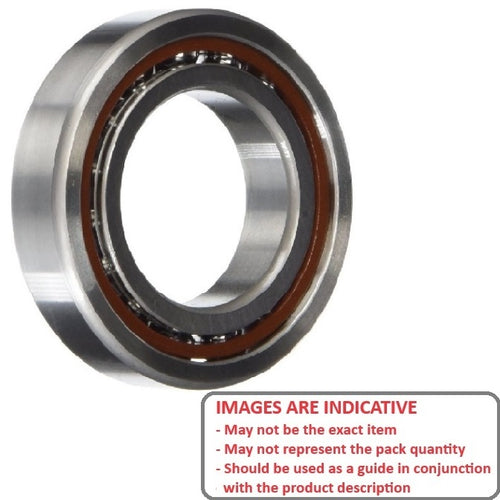

6903-C3-T9H-ACOImage
