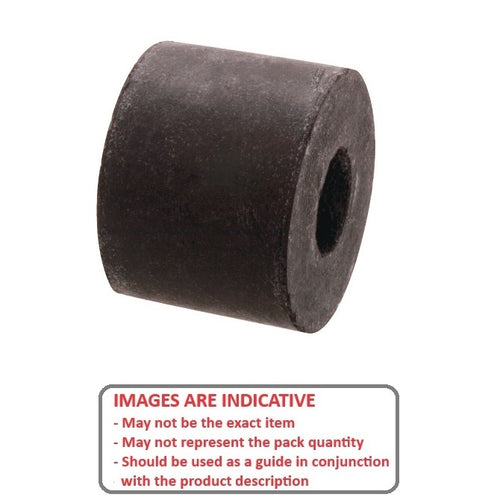

CSN-0160-012 - Datasheet
MBA
Category Information
Mounts - Bumpers - Neoprene SpringsNeoprene Springs Bumpers Mounts. Neoprene elastomer springs have proven to be the safest, most efficient material for punching, stamping and drawing dies.
- An expanded range may be available on special order. Please enquire.
- Major advantages include high loads, increased durability, better performance, no maintenance and long life.
Product Data

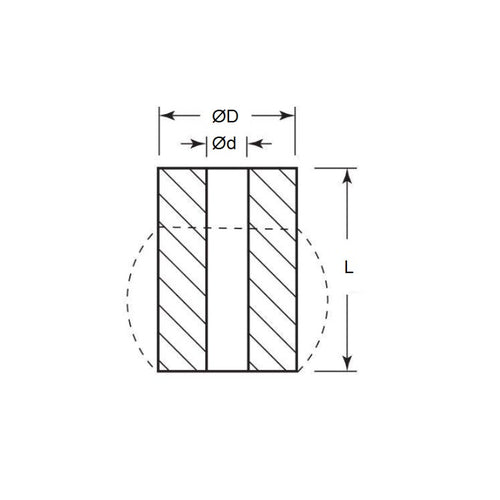

- Outside Diameter (A) : 16.00 mm
- Inside Diameter (B) 6.4 mm
- Free Length (L) 11.9 mm
- Spring Rate 76.4 N/mm Deflection +/- 20 Perc
- Max. Rec. Deflection 4.32 mm
- Approx. Load at Max Deflection 26.9 Kg
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® BES-3500
- BES3500
